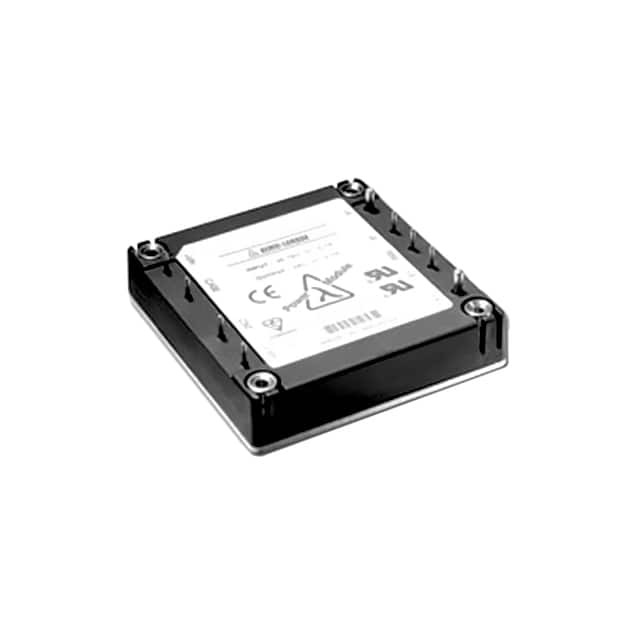

Same model may have multiple batches, images only for reference.

PAH200S48-24/V

Name: PAH200S48-24/V
Brand: TDK-Lambda Americas Inc.
SKU: 929974
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PAH200S48-24/V
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 200W / Isolated Module DC DC Converter 1 Output 24V 8.4A 36V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	PAH (200W)
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	24V
Current - Output (Max)	8.4A
Power (Watts)	200 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	88%
Mounting Type	Through Hole
Package / Case	9-DIP Module
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features	Enable, Active Low
Standard Package	1 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	929974-PAH200S48-24/V
Ultra Librarian 3D Model	Ultra Librarian PAH200S48-24/V CAD Model

Alternative Products

Description

The PAH200S48-24/V is a DC-DC converter from the PAH (200W) series by TDK-Lambda Americas Inc.

Power Rating: 200W
Series: PAH (200W)
Type: Isolated Module
Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
Package: Bulk
Size: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Application: ITE (Commercial)
Standard Package: 1 pcs
Output: Single
Output Voltage: 24V
Maximum Output Current: 8.4A
Input Voltage Range: 36V to 76V
Operating Temperature: -40°C to 100°C
Compliance: California Prop 65
