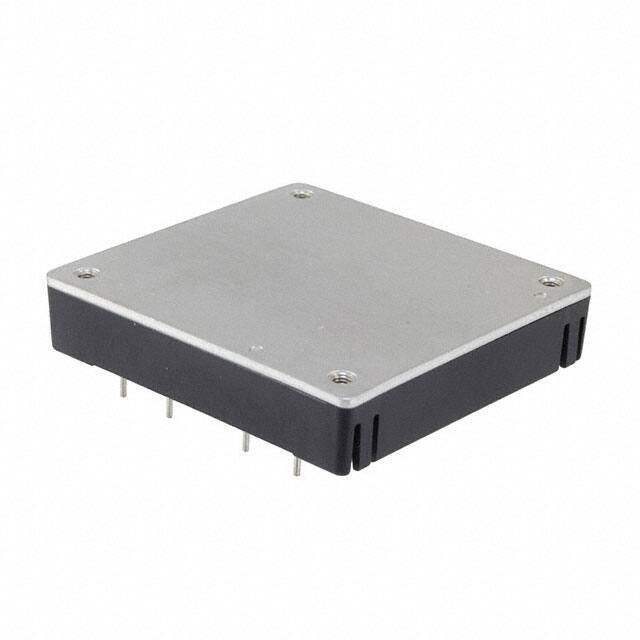

PAH150S48-12 Real Image
Same model may have multiple batches, images only for reference.

PAH150S48-12

Part No PAH150S48-12
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 150W / Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 76V Input
Datasheet
PAH150S48-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr TDK-Lambda Americas Inc.
Series PAH (150W)
Package Bulk
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Current - Output (Max) 12.5A
Power (Watts) 150 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Control Features Enable, Active Low
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 652464-PAH150S48-12
Ultra Librarian 3D Model Ultra Librarian PAH150S48-12 CAD Model

Description

The PAH150S48-12 is a power supply module from TDK-Lambda Americas Inc.

  • Series: PAH
  • Module: 150W isolated module
  • Package: Bulk
  • Size: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Application: ITE (Commercial)
  • Power: 150W
  • Protection: Remote On/Off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
  • Voltage Isolation: 1.5 kV
  • Output: Single
  • Maximum Current: 12.5A
  • Input Voltage Range: 36V to 76V
  • Output Voltage: 12V
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 100°C
  • Status: Obsolete
  • Moisture Sensitivity Level (MSL): 1 (unlimited)
