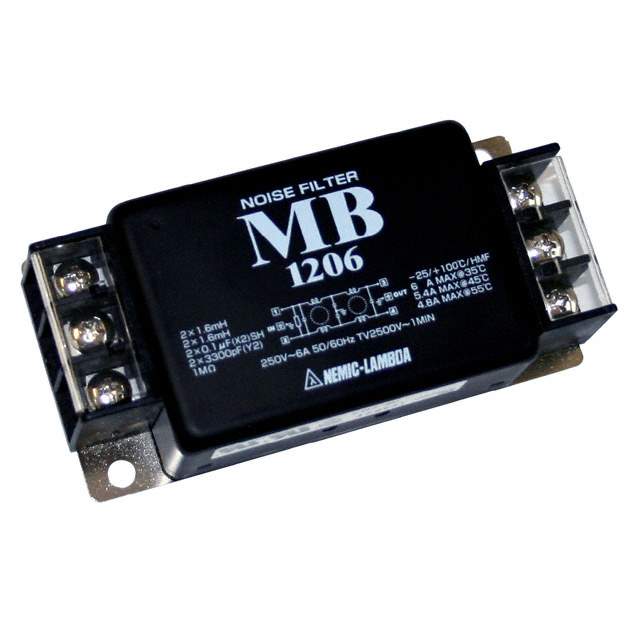

MB1206 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TDK-Lambda Americas Inc.
Series MB
Package Bulk
Product Status Obsolete
Filter Type Single Phase
Configuration Two Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Current 6 A
Frequency - Operating -
Applications General Purpose
Approval Agency CSA, UL, VDE
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Inductance -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.4100
Standard Package 1 pcs
Win Source Part Number 1382811-MB1206
Ultra Librarian 3D Model Ultra Librarian MB1206 CAD Model

Description

The 1382811-MB1206 is a power line filter module from the MB series by TDK-Lambda Americas Inc. It is a two-stage filter designed for general-purpose applications.

  • Filter Type: Two-Stage
  • Current Rating: 6A
  • Rated Voltage DC: 250V DC
  • Rated Voltage AC: 250V AC
  • Operating Temperature: -25°C to 85°C
  • Mounting Type: Chassis Mount
  • REACH: Not Affected
  • ECCN: EAR99
  • Status: Obsolete
  • Package: Bulk
  • Standard Package Quantity: 1 pcs
  • Approvals: CSA, UL, VDE
  • Moisture Sensitivity Level (MSL): Not Applicable
  • HTSUS Code: 8504.90.4100
