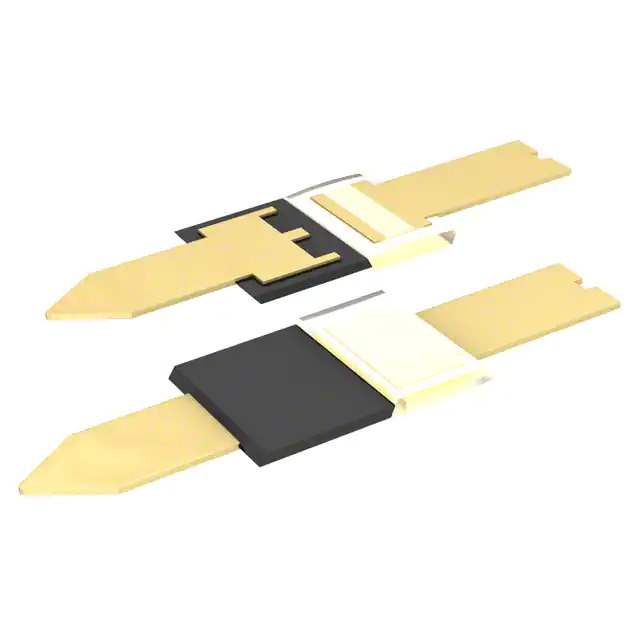

HSCH-5312 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Broadcom Limited
Series HSCH-53xx
Package Bulk
Product Status Obsolete
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 4V
Capacitance @ Vr, F 0.15pF @ 0V, 1MHz
Resistance @ If, F 16Ohm @ 5mA, 1MHz
Power Dissipation (Max) 150 mW
Temperature Range - Operating -65°C ~ 175°C
Package / Case 2-SMD, Flat Lead
Supplier Device Package 07
Base Product Number HSCH
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 873906-HSCH-5312
Ultra Librarian 3D Model Ultra Librarian HSCH-5312 CAD Model

Description

The HSCH-5312 is a Schottky diode used in RF applications and manufactured by Broadcom Limited.

  • Category: Discrete Semiconductor Products - Diodes - RF Diodes
  • Series: HSCH-53xx
  • Package: Bulk
  • Standard Package: 10 pieces
  • Capacitance: 0.15pF @ 0V and 1MHz frequency
  • Maximum Peak Reverse Voltage: 4V
  • Power Dissipation: 150mW
  • Resistance: 16Ohm @ 5mA and 1MHz frequency
  • Package/Case: 2-SMD, Flat Lead
  • Supplier Device Package: 07
  • Operating Temperature Range: -65°C to 175°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.10.0060
  • Status: Obsolete
