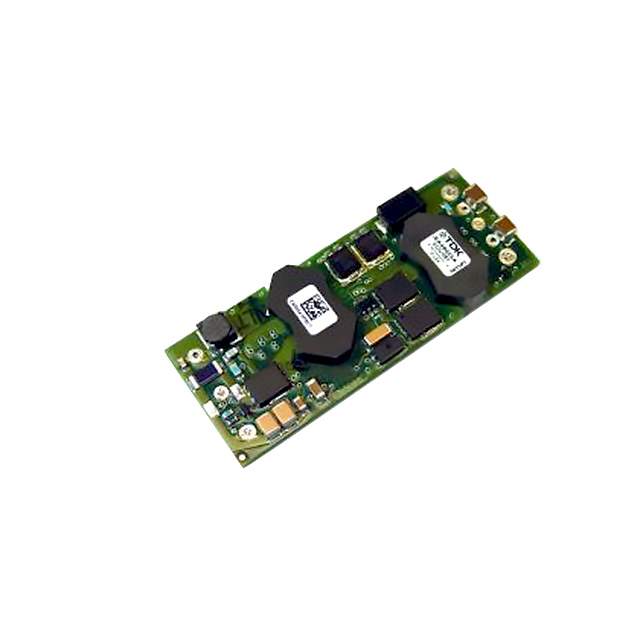

Same model may have multiple batches, images only for reference.

IEA48007A120V-005-R

Name: IEA48007A120V-005-R
Brand: TDK-Lambda Americas Inc.
SKU: 1232262
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IEA48007A120V-005-R
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 78W / Isolated Module DC DC Converter 1 Output 12V 6.5A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	iEA (75W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Current - Output (Max)	6.5A
Power (Watts)	78 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Dimension	2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm)
Control Features	Enable, Active Low
Base Product Number	IEA48007
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	-IEA48007A120V-005-R
Standard Package	80
Win Source Part Number	1232262-IEA48007A120V-005-R
Ultra Librarian 3D Model	Ultra Librarian IEA48007A120V-005-R CAD Model

Alternative Products

Description

The iEA48007A120V-005-R is an isolated module DC-DC converter produced by TDK-Lambda Americas Inc.

Power Rating: 78W
Efficiency: 91%
Voltage Isolation: 1.5kV
Current Output: 6.5A
Features: Remote On/Off, Over-Current Protection, and Over-Voltage Protection
Applications: ITE (commercial)
Standard Package: 80
Mounting Type: Through-Hole
Temperature Range: -40°C to 125°C
Regulation: Halogen-Free
