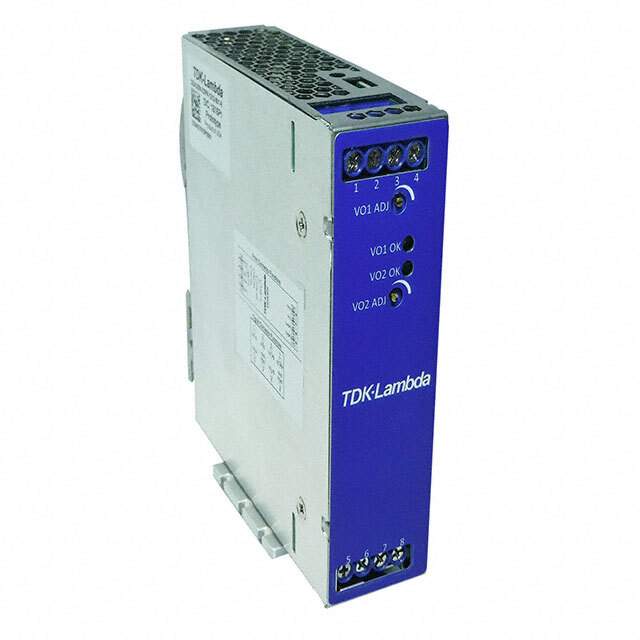

DDA325N-D2PN-1212-001 Real Image
Same model may have multiple batches, images only for reference.

DDA325N-D2PN-1212-001

Part No DDA325N-D2PN-1212-001
Manufacturer TDK-Lambda Americas Inc.
Catalog Off - Board Modules
Description DC DC CONVERTER +/-12V 325W /
Datasheet
DDA325N-D2PN-1212-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>Industrial, DIN Rail Power Supplies
Mfr TDK-Lambda Americas Inc
Series DDA (325W)
Package Box
Input Type DC
Number of Outputs 2
DC Voltage - Input (Min) 9V
DC Voltage - Input (Max) 40V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 14A, 8A
Power (Watts) 325W
Applications ITE (Commercial)
Efficiency 94%
Temperature Range - Operating -40°C ~ 100°C
Features Adjustable Output, Remote On/Off, Remote Sense
Dimension 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm)
Approval Agency CE
Base Product Number DDA325N
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 285-DDA325N-D2PN-1212-001
Standard Package 12
Win Source Part Number 983539-DDA325N-D2PN-1212-001
Ultra Librarian 3D Model Ultra Librarian DDA325N-D2PN-1212-001 CAD Model

Description

The DDA325N-D2PN-1212-001 is a DIN rail power supply that is part of the DDA (325W) series by TDK-Lambda Americas Inc.

  • Power Output: 325W
  • Efficiency: 94%
  • DC Input Types: two
  • Output Voltages: 12V and -12V
  • Operating Temperature: -40°C to 100°C
  • ECCN: EAR99
  • Applications: industrial and ITE (commercial)
