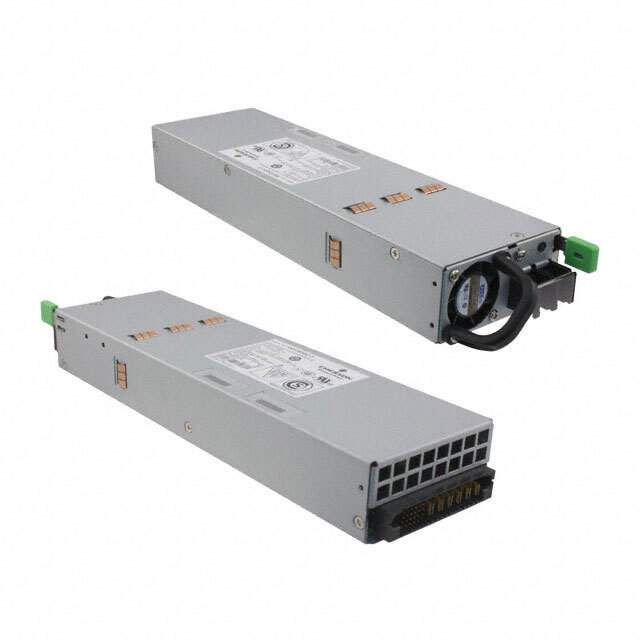

Same model may have multiple batches, images only for reference.

DS1200DC-3

Name: DS1200DC-3
Brand: Artesyn Embedded Technologies
SKU: 1021472
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DS1200DC-3
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 12V 1200W / Front End DC DC Converter 1 Output 12V 100A -72V Input
Datasheet	DS1200DC-3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	Artesyn Embedded Power
Series	DS1200DC (1200W)
Package	Bulk
Type	Front End
Voltage - Input (Min)	-40V
Voltage - Input (Max)	-72V
Number of Outputs	1
Voltage - Output 1	12V
Current - Output (Max)	100A
Power (Watts)	1200W
Applications	ITE (Commercial)
Efficiency	91%
Temperature Range - Operating	-10°C ~ 55°C
Mounting Type	Rack Mount
Dimension	11.00" L x 3.20" W x 1.57" H (279.4mm x 81.3mm x 39.9mm)
Approval Agency	CCC, CE, cUL, EN60950, NEMKO, UL
Base Product Number	DS1200
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.8500
Other Names	454-1430,DS1200DC3
Standard Package	48
Win Source Part Number	1021472-DS1200DC-3
Ultra Librarian 3D Model	Ultra Librarian DS1200DC-3 CAD Model

Alternative Products

Description

The Artesyn Embedded Power DS1200DC-3 is a front-end type DC-DC converter with a power output of 1200 watts.

Product Name: DS1200DC-3
Type: DC-DC Converter (Front-End)
Power Output: 1200 Watts
Efficiency: 91 percent
Current Output: Up to 100A
Application: ITE (Commercial)
Standard Package: 48
Input Voltage: -40V to -72V
Output Voltage: 12V
Mounting: Rack Mount
Temperature Range: -10°C to 55°C
Win Source Part Number: 1021472-DS1200DC-3
