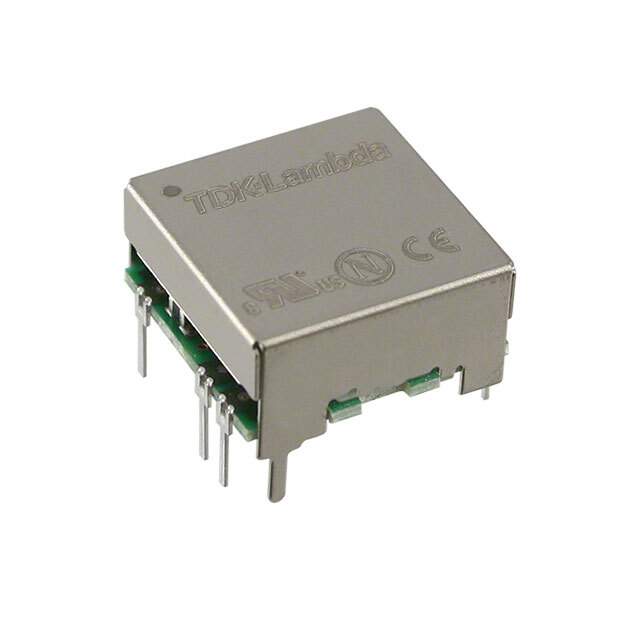

CC1R5-4812SF-E Real Image
Same model may have multiple batches, images only for reference.

CC1R5-4812SF-E

Part No CC1R5-4812SF-E
Manufacturer TDK-Lambda Americas Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12-15V 1W / Isolated Module DC DC Converter 1 Output 12 ~ 15V 125mA 36V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr TDK-Lambda Americas Inc
Series CC-E (1.5W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12 ~ 15V
Current - Output (Max) 125mA
Power (Watts) 1 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 7-DIP Module
Dimension 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number CC1R5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 445-3266,CC1R54812SFE,CC1R5-4812SF-E-ND
Standard Package 10
Win Source Part Number 1017145-CC1R5-4812SF-E
Ultra Librarian 3D Model Ultra Librarian CC1R5-4812SF-E CAD Model

Description

The CC1R5-4812SF-E is an isolated module type electronic component manufactured by TDK-Lambda Americas Inc.

  • Component Type: 1 W power supply board mount>DC DC converter
  • Series: CC-E (1.5W) series
  • Category: power supplies - board mount>DC DC converters
  • Supply and Demand Status: balance
  • Win Source Part Number: 1017145-CC1R5-4812SF-E
