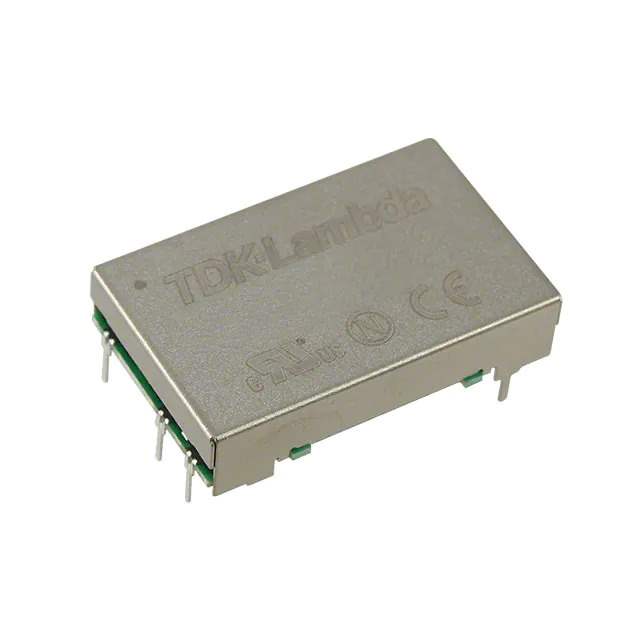

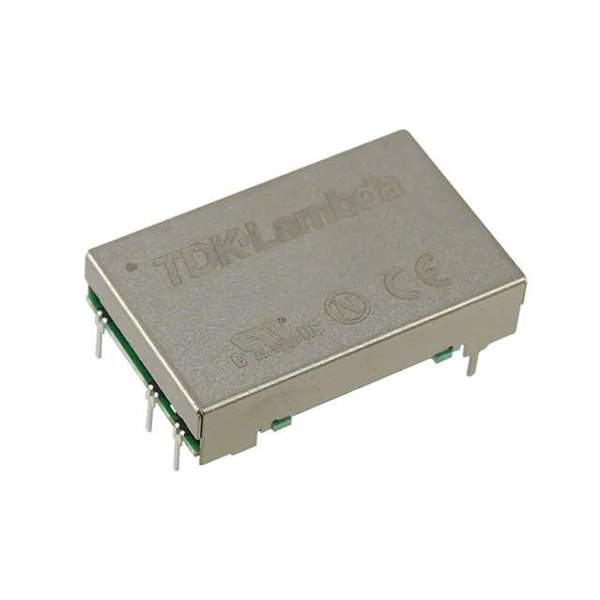

Same model may have multiple batches, images only for reference.

CC10-4812DF-E

Name: CC10-4812DF-E
Brand: TDK-Lambda Americas Inc.
SKU: 844900
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CC10-4812DF-E
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CNVRTR +/-12V +/-15V 10W / Isolated Module DC DC Converter 2 Output 12 ~ 15V -12 ~ -15V 450mA, 450mA 36V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc.
Series	CC-E (10W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	76V
Voltage - Output 1	12 ~ 15V
Voltage - Output 2	-12 ~ -15V
Current - Output (Max)	450mA, 450mA
Power (Watts)	10 W
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	7-DIP Module
Size / Dimension	1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm)
Control Features	Enable, Active Low
Base Product Number	CC10-4812
Standard Package	10 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	844900-CC10-4812DF-E
Ultra Librarian 3D Model	Ultra Librarian CC10-4812DF-E CAD Model

Alternative Products

Description

The CC-E (10W) is an isolated module DC DC converter designed for power supply board mount applications in the commercial sector.

Size: 1.40" L x 0.89" W x 0.33" H
Outputs: Two
Output Voltage Range: 12-15V and -12--15V
Power Output: 10W
Maximum Output Current: 450mA (each output)
Input Voltage Range: 36V to 76V
Control Features: Enable and Active Low
Mounting: Through Hole
Package: 7-DIP Module
Operating Temperature: -40°C to 85°C
Status: Active
