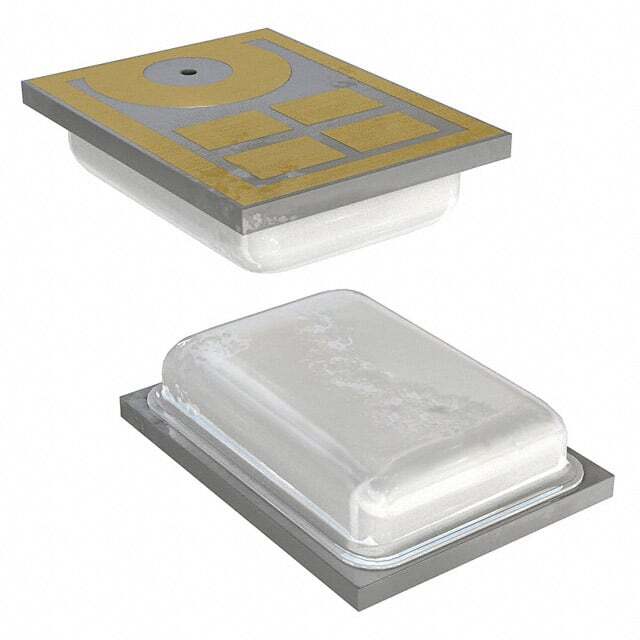

INMP521ACEZ-R7 TDK InvenSense
Same model may have multiple batches, images only for reference.

INMP521ACEZ-R7

Part No INMP521ACEZ-R7
Manufacturer TDK InvenSense
Catalog Microphones
Description MICROPHONE MEMS DIGITAL PDM OMNI / 100 Hz ~ 16 kHz Digital, PDM Microphone MEMS (Silicon) 1.62 V ~ 3.63 V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads
Datasheet
INMP521ACEZ-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Microphones
Mfr TDK InvenSense
Series INMP521
Package Tape & Reel
Product Status Not For New Designs
Type MEMS (Silicon)
Output Type Digital, PDM
Direction Omnidirectional
Frequency Range 100 Hz ~ 16 kHz
Sensitivity -26dB ±3dB @ 94dB SPL
S/N Ratio 65dB
Voltage Range 1.62 V ~ 3.63 V
Current - Supply 1.2 mA
Port Location Bottom
Termination Solder Pads
Dimension 0.157" L x 0.118" W (4.00mm x 3.00mm)
Height (Max) 0.043" (1.10mm)
Shape Rectangular
Base Product Number INMP521
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8518.10.8030
Other Names ADMP521ACEZ-RL7CT-ND,INMP521ACEZ-RL7,ADMP521ACEZ-RL7DKR-ND,ADMP521ACEZ-RL7DKR,ADMP521ACEZRL7,1428-1017-2,ADMP521ACEZ-RL7CT,1428-1017-1,1428-1017-6,ADMP521ACEZ-RL7,ADMP521ACEZ-RL7TR,ADMP521ACEZ-RL7TR-ND,ADMP521ACEZ-RL7-ND
Standard Package 1,000
Win Source Part Number 994053-INMP521ACEZ-R7
Ultra Librarian 3D Model Ultra Librarian INMP521ACEZ-R7 CAD Model

Description

The 994053-INMP521ACEZ-R7 is a digital, PDM output type microphone from TDK InvenSense that comes in a tape & reel package.

  • Type: Digital, PDM Output
  • Direction: Omnidirectional
  • Sensitivity: -26dB ±3dB @ 94dB SPL
  • Voltage Range for Operating: 1.62 V ~ 3.63 V
  • Current - Supply: 1.2 mA
  • Frequency Range: 100 Hz ~ 16 kHz
  • Height (Max): 0.043" (1.10mm)
  • Dimension: 0.157" L x 0.118" W (4.00mm x 3.00mm)
  • ECCN: EAR99
  • Suitable for: Various Audio Products
  • Packaging: Tape & Reel
