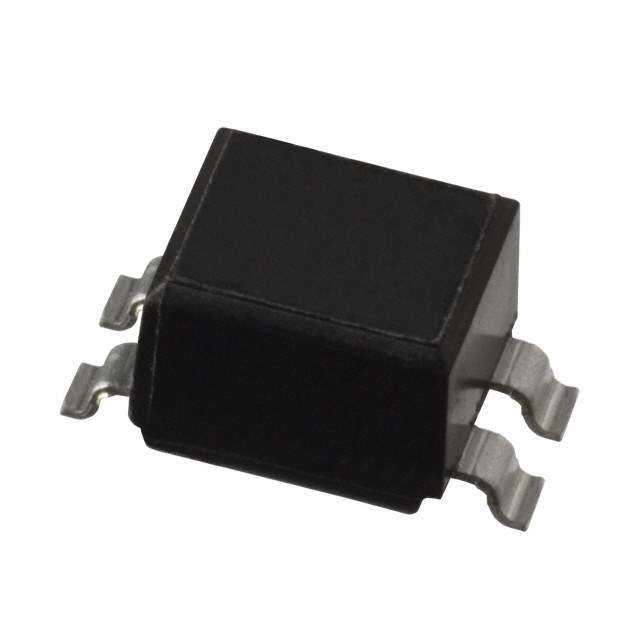

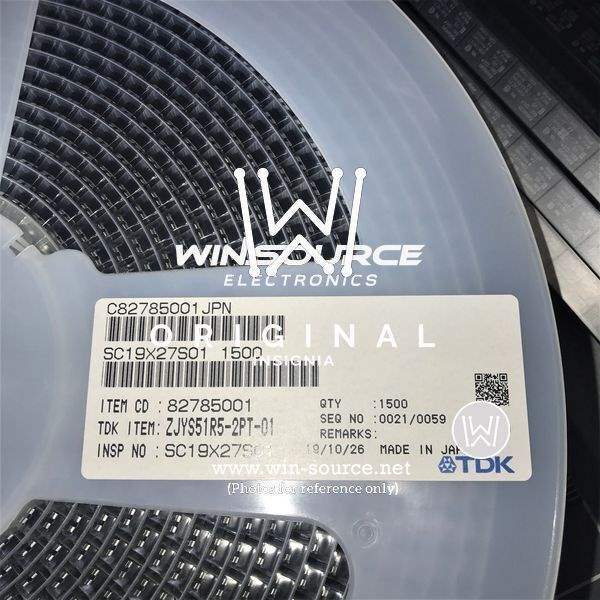

ZJYS51R5-2PT-G01 Real Image ZJYS51R5-2PT-G01 label picture
Same model may have multiple batches, images only for reference.
ZJYS51R5-2PT-G01 Real Image ZJYS51R5-2PT-G01 label picture
ZJYS51R5-2PT-G01 Real Image ZJYS51R5-2PT-G01 label picture
Same model may have multiple batches, images only for reference.

ZJYS51R5-2PT-G01

Part No ZJYS51R5-2PT-G01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 2A 2LN 200 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 120 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.200" (5.08mm)
Dimension Horizontal, 4 Gull Wing
Win Source Part Number 054564-ZJYS51R5-2PT-G01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ZJYS51R5-2PT-G01 CAD Model

Description

The TDK Corporation 054564-ZJYS51R5-2PT-G01 is a signal line filter with a voltage rating of 50V and a maximum current rating of 2A.

  • DC Resistance: 120 mOhm
  • Impedance: 200 Ohm @ 100MHz
  • Package: Reel - TR
  • Mounting Type: SMD (SMT)
  • Application: Filtering is required
  • Height: 0.200" (5.08mm)
  • Lines: 2-line filter
  • Operating Temperature: -25°C to 85°C
  • Dimension: Horizontal, 4 Gull Wing
