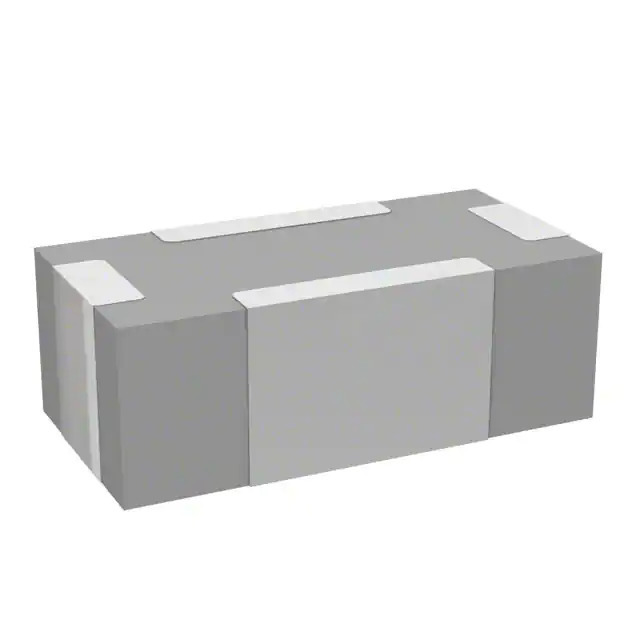

Same model may have multiple batches, images only for reference.

YFF15PC1A224MT000N

Name: YFF15PC1A224MT000N
Brand: TDK Corporation
SKU: 1369331
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	YFF15PC1A224MT000N
Manufacturer	TDK Corporation
Catalog	Feed Through Capacitors
Description	CAP FEEDTHRU 0.22UF 20% 10V 0402
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Feed Through Capacitors
Mfr	TDK Corporation
Series	YFF-P
Package	Tape & Reel
Product Status	Active
Capacitance	0.22 µF
Tolerance	±20%
Voltage - Rated	10V
Current	3 A
DC Resistance (DCR) (Max)	30mOhm
Temperature Range - Operating	-55°C ~ 105°C
Insertion Loss	40dB @ 4MHz ~ 1GHz
Temperature Coefficient	-
Ratings	-
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric), 4 PC Pad
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height (Max)	0.014" (0.35mm)
Thread Size	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Win Source Part Number	1369331-YFF15PC1A224MT000N
Ultra Librarian 3D Model	Ultra Librarian YFF15PC1A224MT000N CAD Model

Alternative Products

Description

The YFF-P series from TDK Corporation is a feed-through capacitor that is designed to provide effective filtering for electronic circuits.

Capacitance: 0.22 μF
Voltage - Rated: 10V
Size / Dimension: 0.039" L x 0.022" W (1.00mm x 0.55mm)
Insertion Loss: 40dB @ 4MHz ~ 1GHz
Mounting Type: Surface Mount
Package / Case: 0402 (1005 Metric), 4 PC Pads
Height - Seated (Max): 0.014" (0.35mm)
DC Resistance (DCR): 30mΩ
REACH Status: Unaffected
ECCN: EAR99
Status: Active
Series: YFF-P
