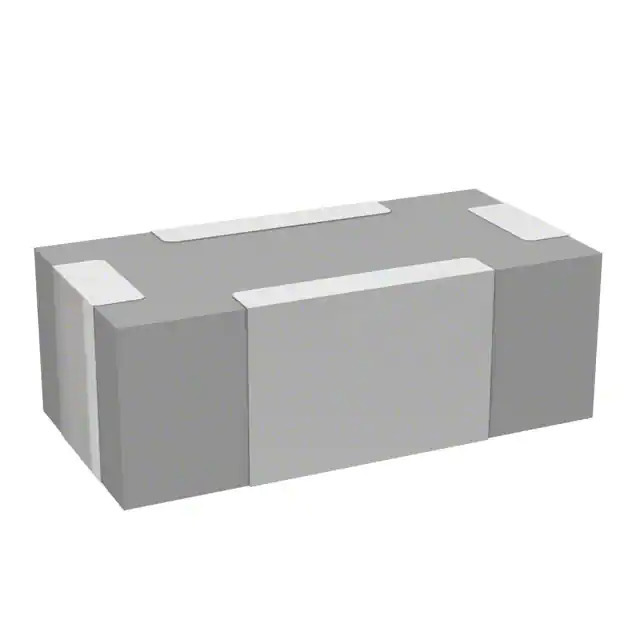

The YFF-P series feed through capacitor is a surface mountable component manufactured by TDK Corporation.

• Operating Temperature: -55°C ~ 105°C
• Size / Dimension: 0.039" L x 0.022" W (1.00mm x 0.55mm)
• Height - Seated (Max): 0.014" (0.35mm)
• Capacitance: 0.47 µF
• Voltage - Rated: 6.3V
• Tolerance: ±20%
• Insertion Loss: 40dB @ 2MHz ~ 1GHz
• DC Resistance (DCR) (Max): 30mOhm Max
• Mounting Type: Surface Mount
• Package / Case: 0402 (1005 Metric)
• Packaging: Tape & Reel (TR)
• REACH Status: REACH Unaffected
• ECCN: EAR99
• Application: General Purpose
• Current: 3A
