Same model may have multiple batches, images only for reference.

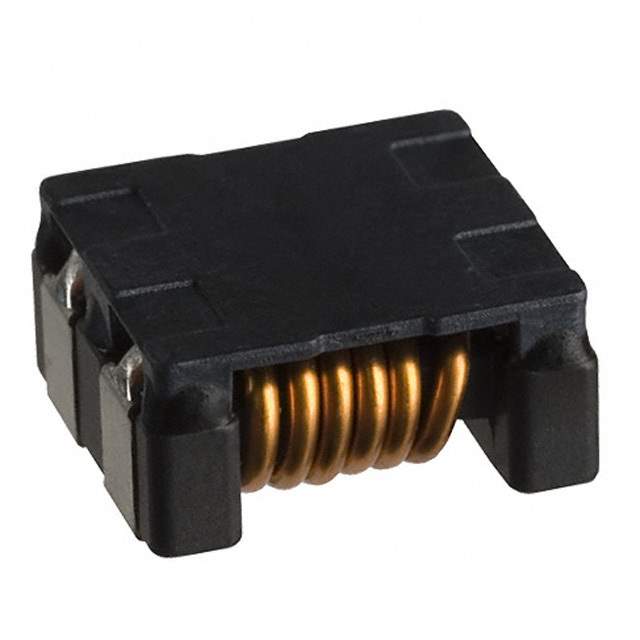

ACM1211-701-2PL-TL Real Image
Same model may have multiple batches, images only for reference.

ACM1211-701-2PL-TL

Part No ACM1211-701-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 8A 2LN 700 OHM SMD
Datasheet
ACM1211-701-2PL-TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 6 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.236" (6.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 089885-ACM1211-701-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM1211-701-2PL-TL CAD Model

Description

Product Overview

The ACM1211-701-2PL-TL is a specialized component designed for high-performance electronic applications. It combines advanced features with user-friendly functionality for enhanced usability.

Features and Benefits

  • High Performance: Integrates cutting-edge technology for superior output.
  • Reliable Operation: Engineered for consistent performance under various conditions.
  • Compact and Lightweight: Easy to handle and install in constrained spaces.
  • Wide Compatibility: Compatible with numerous applications due to its adaptable design.

Applications

  • Network Systems
  • Consumer Electronics
  • Industrial Control Systems
  • Defense Electronics

Additional Details

The efficient design of the ACM1211-701-2PL-TL ensures not only top-notch performance but also reduces the need for frequent adjustments, thus minimizing maintenance costs and downtime.
