Same model may have multiple batches, images only for reference.

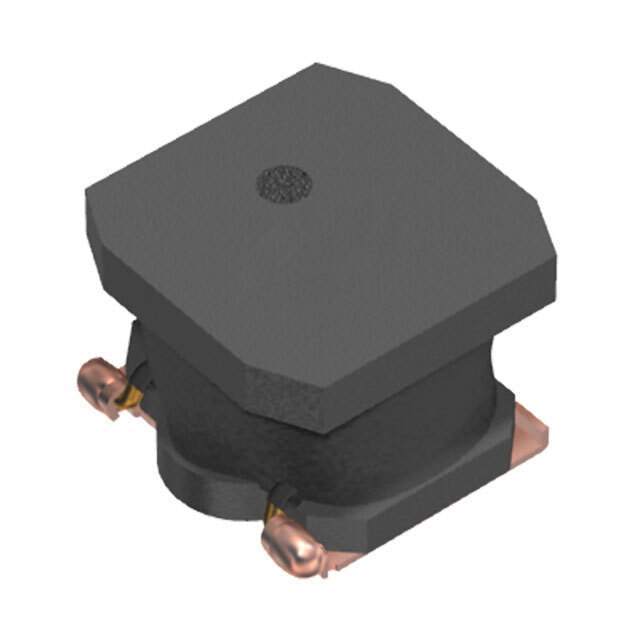

VLS6045EX-6R8M Real Image
Same model may have multiple batches, images only for reference.

VLS6045EX-6R8M

Part No VLS6045EX-6R8M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Wound Ferrite
Datasheet
VLS6045EX-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLS-EX
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating 3.6A
Current - Saturation 4.7A
Shielding Shielded
DC Resistance (DCR) 47 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1279409-VLS6045EX-6R8M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLS
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VLS6045EX-6R8M CAD Model

Description

The TDK VLS6045EX-6R8M is a wirewound inductor that is part of the VLS-EX series.

  • Package: Shielded
  • Package Type: Nonstandard
  • Current Rating: 3.6A
  • Inductance: 6.8μH
  • Tolerance: ±20%
  • Material: Ferrite
  • Supply and Demand Status: Limited
  • Manufacturer: TDK
