Same model may have multiple batches, images only for reference.

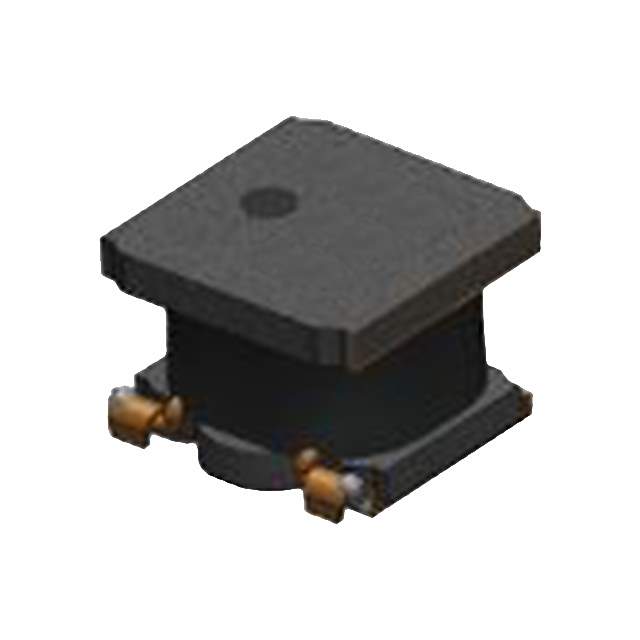

VLS5045EX-6R8M Real Image
Same model may have multiple batches, images only for reference.

VLS5045EX-6R8M

Part No VLS5045EX-6R8M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.9A 59.8 MOHM / Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±20%
Current Rating (Amps) 2.9A
Current - Saturation 3.6A
Shielding Shielded
DC Resistance (DCR) 59.8mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807482-VLS5045EX-6R8M
Ultra Librarian 3D Model Ultra Librarian VLS5045EX-6R8M CAD Model

Description

The 807482-VLS5045EX-6R8M is a wirewound electronic component manufactured by TDK Corporation.

  • Mounting Style: SMD
  • Shielded: Yes
  • Inductance: 6.8μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current Saturation: 3.6A
  • DC Resistance (DCR): 59.8mOhm Max
  • Operating Temperature: -40°C to 105°C
  • Dimensions: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Manufacturer Package: Nonstandard
  • Height: 0.177" (4.50mm) when seated
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 2.9A
  • Inductance Frequency - Test: 100kHz
