Same model may have multiple batches, images only for reference.

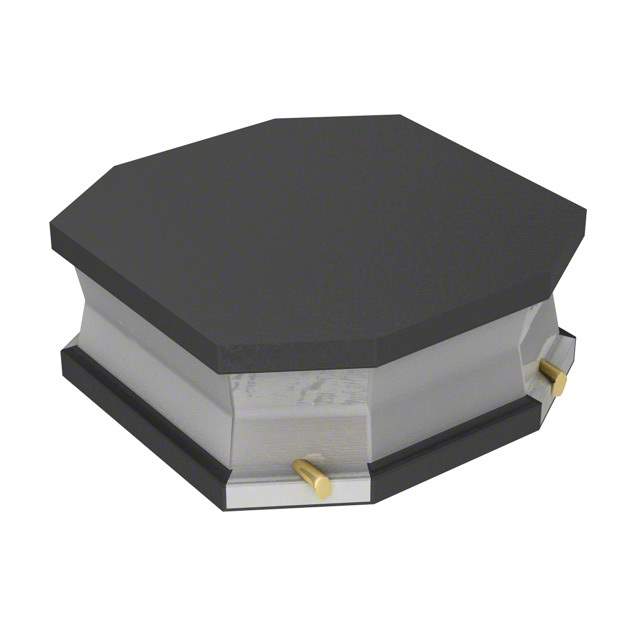

VLS3012T-3R3M1R3 Real Image
Same model may have multiple batches, images only for reference.

VLS3012T-3R3M1R3

Part No VLS3012T-3R3M1R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.3A 120 MOHM
Datasheet
VLS3012T-3R3M1R3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Inductance 3.3μH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 1.3A
DC Resistance (DCR) 120 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036398-VLS3012T-3R3M1R3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLS3012T-3R3M1R3 CAD Model

Description

The TDK Corporation wirewound inductor is a high-quality component that is perfect for use in a variety of electronic applications.

  • Current Rating: 1.3A
  • Inductance: 3.3μH
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 120 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Category: Inductors, Coils, Chokes
  • Status: Not for new designs
  • Packaging: Reel - TR
  • Popularity: Medium popularity
  • Supply and Demand Status: Balanced
