Same model may have multiple batches, images only for reference.

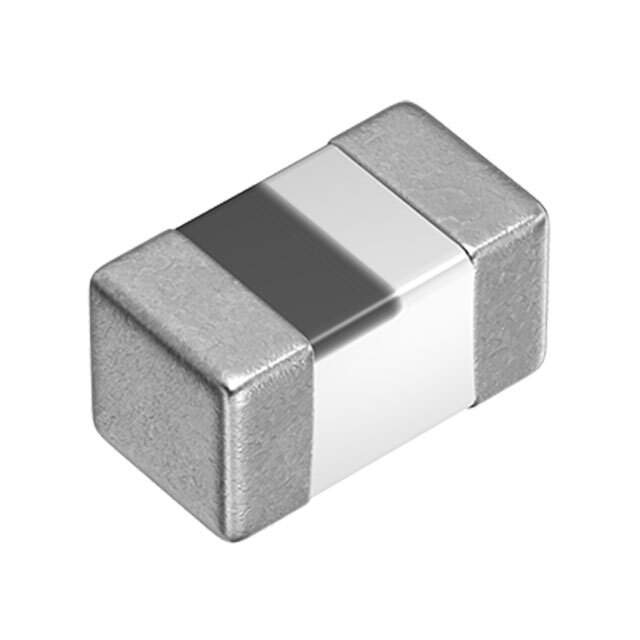

MLG0402P3N0BT000 Real Image
Same model may have multiple batches, images only for reference.

MLG0402P3N0BT000

Part No MLG0402P3N0BT000
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3NH 200MA 900 MOHM SMD / 3 nH Unshielded Multilayer Inductor 200 mA 900mOhm Max 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Non-Magnetic
Inductance 3 nH
Tolerance ±0.1nH
Current Rating (Amps) 200 mA
Shielding Unshielded
DC Resistance (DCR) 900mOhm Max
Q @ Freq 8 @ 500MHz
Frequency - Self Resonant 7GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 500 MHz
Mounting Surface Mount
Case / Package 01005 (0402 Metric)
Supplier Device Package 01005 (0402 Metric)
Size / Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max) 0.009" (0.22mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 20,000
Win Source Part Number 1327724-MLG0402P3N0BT000
Ultra Librarian 3D Model Ultra Librarian MLG0402P3N0BT000 CAD Model

Description

The MLG0402P3N0BT000 fixed inductor from TDK Corporation is designed for use in a variety of applications.

  • Shielding: Unshielded
  • Inductance: 3nH
  • Tolerance: ±0.1nH
  • DC Resistance: 900mOhm
  • Package: 01005 (0402 Metric)
  • Mounting: Surface mount technology (SMT)
  • Packaging: Reel (TR)
  • ROHS3 Compliant: Yes
