Same model may have multiple batches, images only for reference.

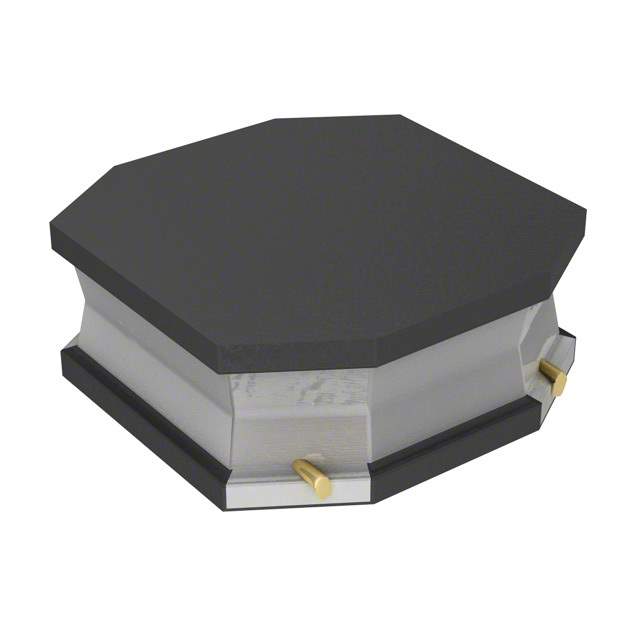

VLS3012ET-2R2M Real Image
Same model may have multiple batches, images only for reference.

VLS3012ET-2R2M

Part No VLS3012ET-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.35A 96 MOHM
Datasheet
VLS3012ET-2R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.35A
Current - Saturation 1.35A
DC Resistance (DCR) 96 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036392-VLS3012ET-2R2M
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian VLS3012ET-2R2M CAD Model

Description

The TDK Corporation 036392-VLS3012ET-2R2M is a wirewound inductor with a current rating of 1.35A and an inductance of 2.2μH.

  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Material: ferrite material
  • Current Saturation: 1.35A
  • DC Resistance (DCR): 96 mOhm Max
  • Quantity per package: 2k pcs
