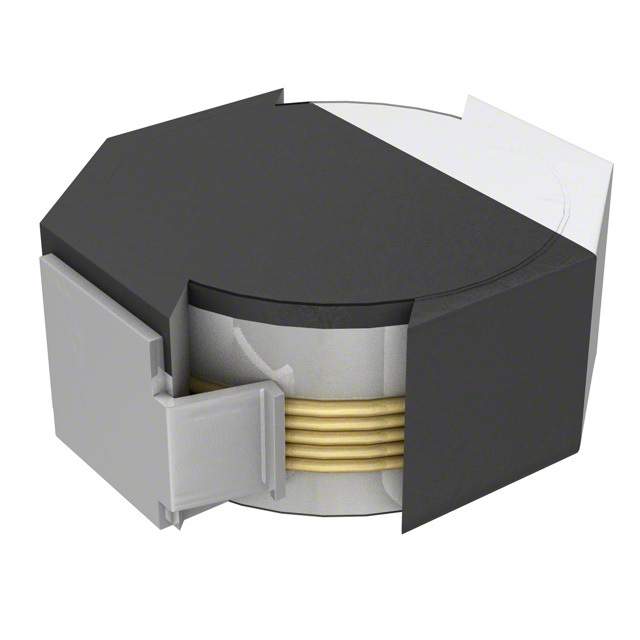

VLF3012AT-100MR49 TDK Corporation VLF3012AT-100MR49 Real Image
Same model may have multiple batches, images only for reference.
VLF3012AT-100MR49 TDK Corporation VLF3012AT-100MR49 Real Image
VLF3012AT-100MR49 TDK Corporation VLF3012AT-100MR49 Real Image
Same model may have multiple batches, images only for reference.

VLF3012AT-100MR49

Part No VLF3012AT-100MR49
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 490MA 410 MOHM
Datasheet
VLF3012AT-100MR49 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 490mA
Current - Saturation 490mA
DC Resistance (DCR) 410 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 036311-VLF3012AT-100MR49
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF3012AT-100MR49 CAD Model

Description

The TDK Corporation Wirewound Inductors are used in various electronic devices, especially inductor-based power supplies.

  • Popularity: Medium
  • Supply and Demand: balanced
  • Win Source Part Number: 036311-VLF3012AT-100MR49
  • Current Rating: 490mA
  • Inductance: 10μH
  • Height: 0.047" (1.20mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • DC Resistance (DCR): 410 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Not for New Designs: True
