Same model may have multiple batches, images only for reference.

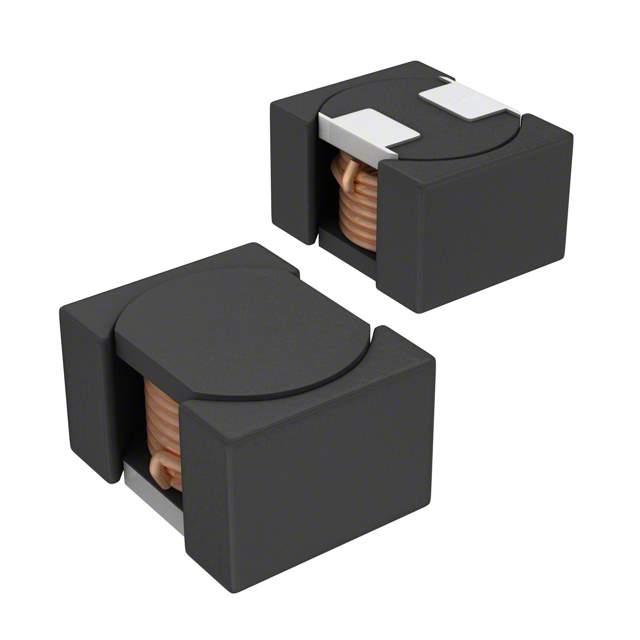

VLF252015MT-220M-CA Real Image
Same model may have multiple batches, images only for reference.

VLF252015MT-220M-CA

Part No VLF252015MT-220M-CA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 280MA 730 MOHM
Datasheet
VLF252015MT-220M-CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 580mA
Current - Saturation 310mA
DC Resistance (DCR) 730 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 1117136-VLF252015MT-220M-CA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF252015MT-220M-CA CAD Model

Description

The TDK Corporation VLF252015MT-220M-CA is a wirewound inductor with an inductance of 22μH and a current rating of 580mA.

  • Mounting Technology: SMD (SMT)
  • Height: 0.059 inches (1.50mm)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance: 730 mOhm max
  • Operating Temperature: -40°C to 105°C
  • Popularity: Popular
  • Supply and Demand: Balanced
