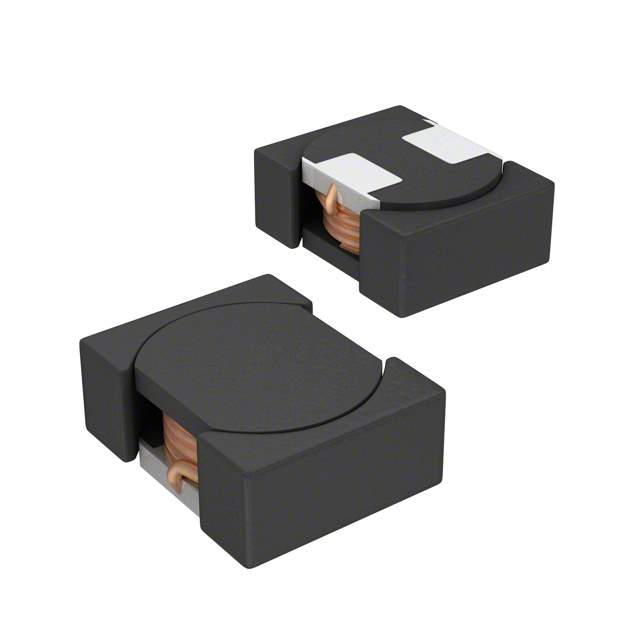

VLF252010MT-4R7M Real Image
Same model may have multiple batches, images only for reference.

VLF252010MT-4R7M

Part No VLF252010MT-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 950MA 300MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 950 mA 300mOhm Max 1008 (2520 Metric)
Datasheet
VLF252010MT-4R7M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 950 mA
Current - Saturation (Isat) 570mA
Shielding Shielded
DC Resistance (DCR) 300mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-15794-2,445-15794-1,445-15794-6
Standard Package 2,000
Win Source Part Number 1327846-VLF252010MT-4R7M
Ultra Librarian 3D Model Ultra Librarian VLF252010MT-4R7M CAD Model

Description

The VLF252010MT-4R7M is a drum core, wirewound inductor manufactured by TDK Corporation.

  • Category: Fixed inductor
  • Packaging: Reel - TR
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm) Max
  • Inductance: 4.7 µH
  • DC Resistance (DCR): 300mOhm Max
  • Shielding: Shielded
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Status: Obsolete
