Same model may have multiple batches, images only for reference.

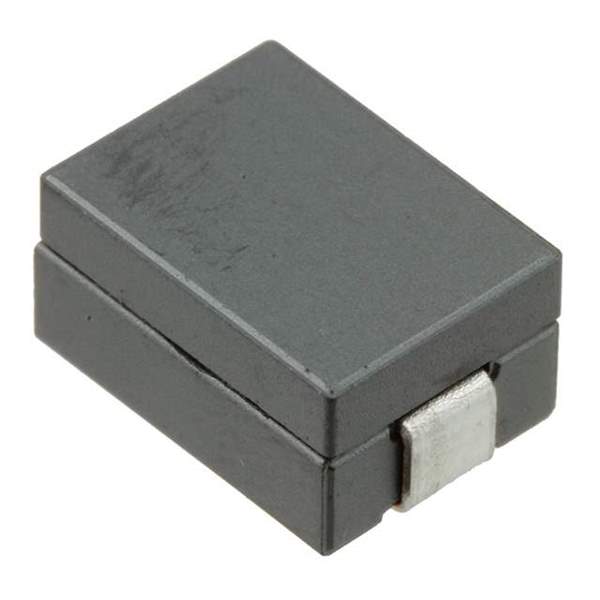

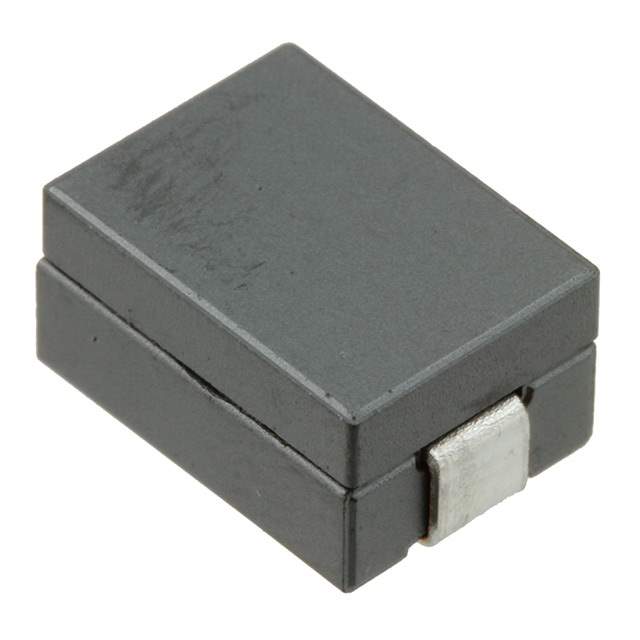

VLB10050HT-R15M Real Image
Same model may have multiple batches, images only for reference.

VLB10050HT-R15M

Part No VLB10050HT-R15M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Wound Ferrite
Datasheet
VLB10050HT-R15M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLB
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 150nH
Tolerance ±20%
Current Rating 31A
Current - Saturation 52A
Shielding Unshielded
DC Resistance (DCR) 0.35 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Size 0.362" L x 0.264" W (9.20mm x 6.70mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 728315-VLB10050HT-R15M
Popularity Medium
Supply and Demand Status Limited
Family Name VLB
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VLB10050HT-R15M CAD Model

Description

The TDK Corporation VLB10050HT-R15M is a medium popularity wirewound inductor that is designed for use in various electronic circuits.

  • Product Name: VLB10050HT-R15M
  • Manufacturer: TDK Corporation
  • Popularity: Medium
  • Type: Wirewound Inductor
  • Mounting Type: Surface-mount device
  • Package: Non-standard
  • Inductance: 150nH
  • Current Rating: 31A
  • Supply and Demand Status: Limited
