Same model may have multiple batches, images only for reference.

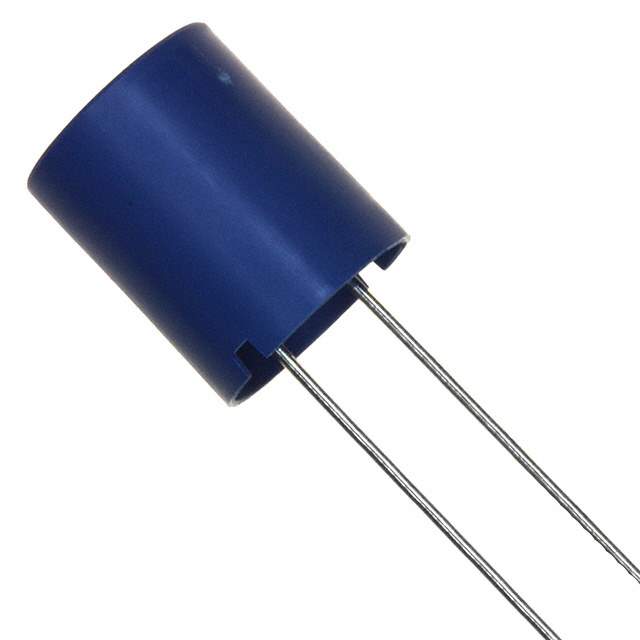

TSL1315RA-332JR44-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-332JR44-PF

Part No TSL1315RA-332JR44-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3MH 440MA 3.1 OHM TH
Datasheet
TSL1315RA-332JR44-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 3.3mH
Tolerance ±5%
Current Rating 440mA
Current - Saturation 690mA
DC Resistance (DCR) 3.1 Ohm Max
Q @ Freq 40 @ 252kHz
Frequency - Self Resonant 600kHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122970-TSL1315RA-332JR44-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-332JR44-PF CAD Model

Description

The TDK Corporation inductor with a part number of 122970-TSL1315RA-332JR44-PF is a through-hole mounted component with a maximum seated height of 0.669 inches. This component has a current rating of 440mA and an inductance of 3.3mH.

  • Mounting: through-hole
  • Height: 0.669 inches
  • Current Rating: 440mA
  • Inductance: 3.3mH
  • Tolerance: ±5%
  • Current Saturation: 690mA
  • Q @ Freq: 40 @ 252kHz
  • Frequency: 600kHz
  • DC Resistance: 3.1 Ohm Max
  • Temperature Range: -20°C to 85°C
  • Status: obsolete (EOL)
  • Popularity: medium popularity
  • Supply and demand status: balanced
