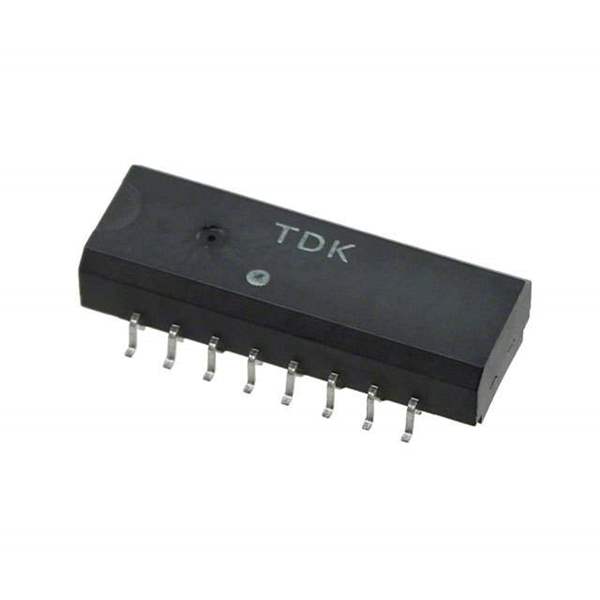

TLA-6T103LF TDK Corporation
Same model may have multiple batches, images only for reference.

TLA-6T103LF

Part No TLA-6T103LF
Manufacturer TDK Corporation
Catalog Pulse Transformers
Description XFRMR FOR QS6611 CHIP SET 16SOP / 350μH LAN Pulse Transformer 1CT:1CT Surface Mount
Datasheet
TLA-6T103LF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr TDK Corporation
Series TLA
Package Tape & Reel
Product Status Obsolete
Transformer Type LAN
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.012" L x 0.366" W (25.70mm x 9.30mm)
Height - Seated (Max) 0.234" (5.95mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 368505-TLA-6T103LF
Ultra Librarian 3D Model Ultra Librarian TLA-6T103LF CAD Model

Description

The 368505-TLA-6T103LF is a pulse transformer from the TLA series by TDK Corporation.

  • Series: TLA
  • Application: LAN (Local Area Network)
  • Size: 1.012" L x 0.366" W (25.70mm x 9.30mm)
  • Height: 0.234" (5.95mm) when seated
  • Temperature Range: 0°C to 70°C
  • Inductance: 350µH
  • Package: Tape and Reel
  • Standard Package Quantity: 10 pcs
  • Status: Obsolete
