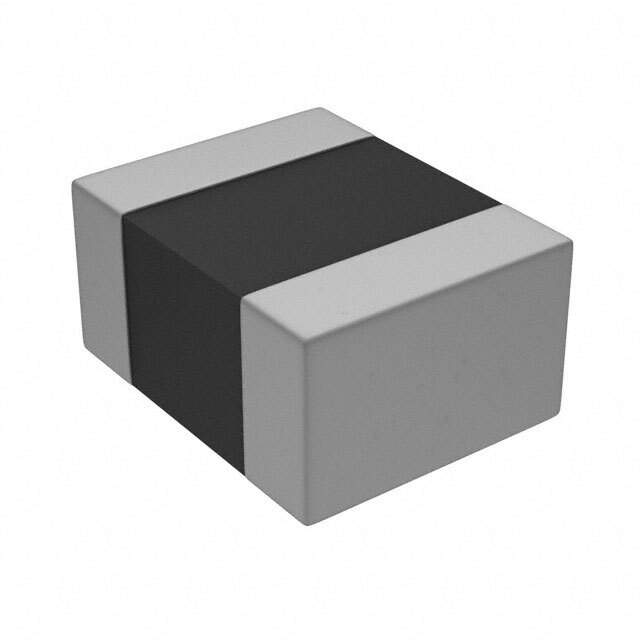

TFM201610GHM-1R0MTAA TDK Corporation TFM201610GHM-1R0MTAA Real Image
Same model may have multiple batches, images only for reference.
TFM201610GHM-1R0MTAA TDK Corporation TFM201610GHM-1R0MTAA Real Image
TFM201610GHM-1R0MTAA TDK Corporation TFM201610GHM-1R0MTAA Real Image
Same model may have multiple batches, images only for reference.

TFM201610GHM-1R0MTAA

Part No TFM201610GHM-1R0MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Thin Film 1uH 20% 1MHz Metal 3.1A 0.06Ohm DCR 0806 T/R / FIXED IND 1UH 3.1A 60 MOHM SMD
Datasheet
TFM201610GHM-1R0MTAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Thin Film
Material - Core Metal
Inductance 1μH
Tolerance ±20%
Current Rating 3.1A
Current - Saturation 3.6A
DC Resistance (DCR) 60 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 1106845-TFM201610GHM-1R0MTAA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TFM
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian TFM201610GHM-1R0MTAA CAD Model

Description

The TDK Corporation TFM201610GHM-1R0MTAA is a thin film inductor with a current rating of 3.1A and an inductance of 1μH.

  • Current Rating: 3.1A
  • Inductance: 1μH
  • Tolerance: ±20%
  • DC Resistance: 60 mOhm max
  • Category: Inductor, coil, or choke
  • Packaging: Reel
  • Height: 0.039 inches (1.00mm)
  • Mounting: Surface mount technology (SMT)
  • Core Material: Metal
  • Current Saturation: 3.6A
  • Temperature Range: -40°C to 125°C
  • Case/Package: 0806 (2016 metric)
  • Halogen-Free: Yes
  • Compliance: EAR99
  • Country of Origin: Japan
  • Estimated EOL Date: 2029
  • Supply and Demand: Sufficient
