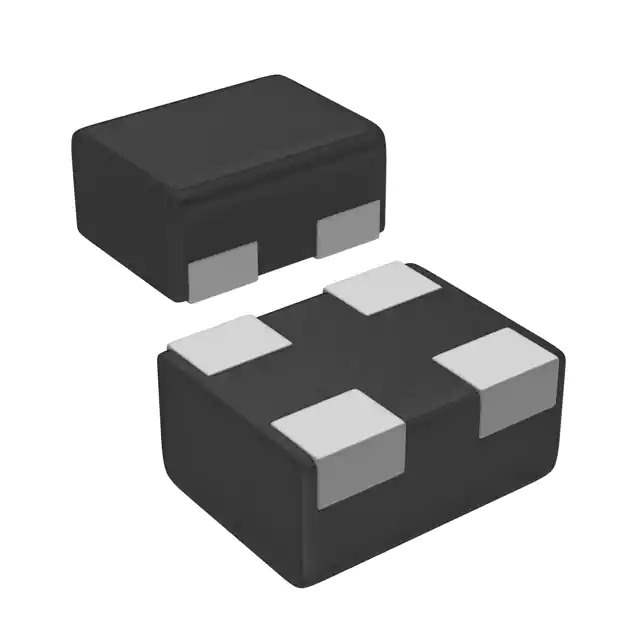

TCM0806G-650-2P-T200 Real Image
Same model may have multiple batches, images only for reference.

TCM0806G-650-2P-T200

Part No TCM0806G-650-2P-T200
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 100MA 2LN 65 OHM SMD
Datasheet
TCM0806G-650-2P-T200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series TCM-G
Package Tape & Reel
Product Status Obsolete
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 65 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 2.5Ohm
Voltage Rating - DC 10V
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) 0.018" (0.45mm)
Package / Case 0302 (0806 Metric), 4 Lead
Standard Package 10,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 936247-TCM0806G-650-2P-T200
Ultra Librarian 3D Model Ultra Librarian TCM0806G-650-2P-T200 CAD Model

Description

The 936247-TCM0806G-650-2P-T200 is a common mode choke designed for signal line filtering.

  • Maximum Voltage Rating: 10V
  • Current Rating: 100mA
  • Impedance: 65 Ohms @ 100 MHz
  • Size: 0.033" L x 0.026" W (0.85mm x 0.65mm)
  • Manufacturer: TDK Corporation
  • Product Status: obsolete
