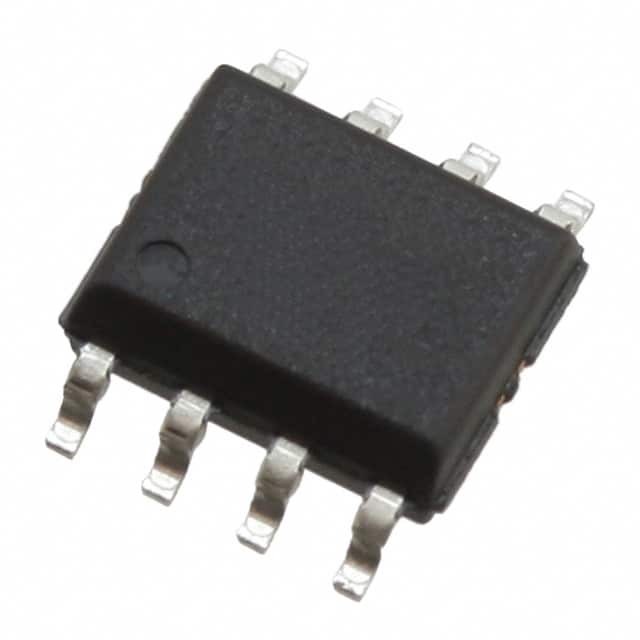

Same model may have multiple batches, images only for reference.
AS5601-ASOT
Same model may have multiple batches, images only for reference.

AS5601-ASOT

Part No AS5601-ASOT
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ANGLE SMD / Hall Effect Sensor Angle External Magnet, Not Included Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Active
For Measuring Angle
Technology Hall Effect
Output Analog Voltage
Actuator Type External Magnet, Not Included
Voltage - Supply 3.3V, 5V
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number AS5601
Standard Package 2,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851317-AS5601-ASOT
Ultra Librarian 3D Model Ultra Librarian AS5601-ASOT CAD Model

Description

The AS5601-ASOT is a hall effect position sensor designed for angle measurements in applications such as rotary knobs and encoders.

  • Sensor Type: Hall Effect Position Sensor
  • Operation: External Magnet (Not Included)
  • Output Signal: Analog Voltage
  • Range: Linear
  • Voltage Supply: 3.3V or 5V
  • Mounting Type: Surface Mount
  • Package: 8-SOIC
  • Temperature Range: -40°C to 125°C
  • Standard Package: 2,500 pcs
