Same model may have multiple batches, images only for reference.

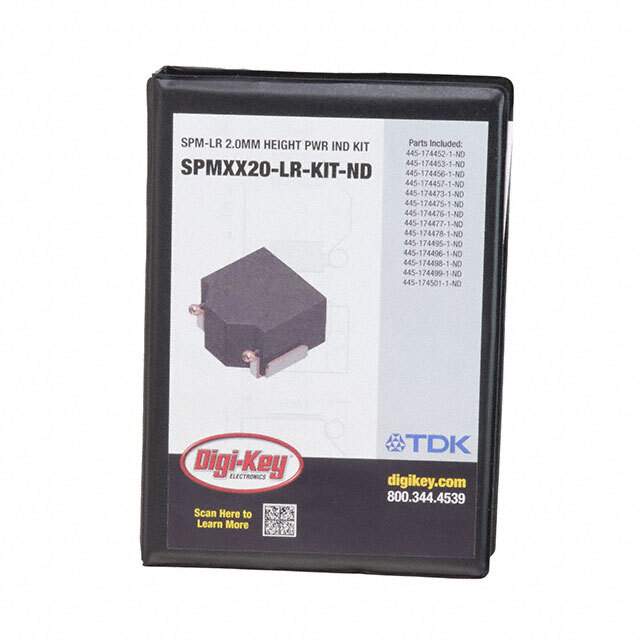

SPMXX20-LR-KIT Real Image
Same model may have multiple batches, images only for reference.

SPMXX20-LR-KIT

Part No SPMXX20-LR-KIT
Manufacturer TDK Corporation
Catalog Inductor Kits
Description SPM-LR 2.0MM HEIGHT PWR IND KIT / Fixed Kit 140 Pieces (14 Values - 10 Each) Surface Mount
Datasheet
SPMXX20-LR-KIT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Kits>Inductor Kits
Mfr TDK Corporation
Series SPM-LR
Package Book
Kit Type Fixed
Style Wirewound
Material - Core Metal
Quantity 140 Pieces (14 Values - 10 Each)
Inductance Range 470nH ~ 10µH
Mounting SMD (SMT)
Packages Included Non-Standard SMD
Shielding Shielded
Other Names Q11632630
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1243334-SPMXX20-LR-KIT
Ultra Librarian 3D Model Ultra Librarian SPMXX20-LR-KIT CAD Model

Description

The TDK Corporation SPMXX20-LR-KIT is a kit of fixed inductors from the SPM-LR series.

  • Series: SPM-LR
  • Kit Includes: 140 pieces (14 values - 10 each)
  • Inductance Range: 470nH ~ 10µH
  • Inductors: Wirewound and shielded
  • Package: Book
  • Mounting: SMD (SMT)
  • Core Material: Metal
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH: Not affected by REACH regulations
  • HTSUS Code: 8504.50.4000
