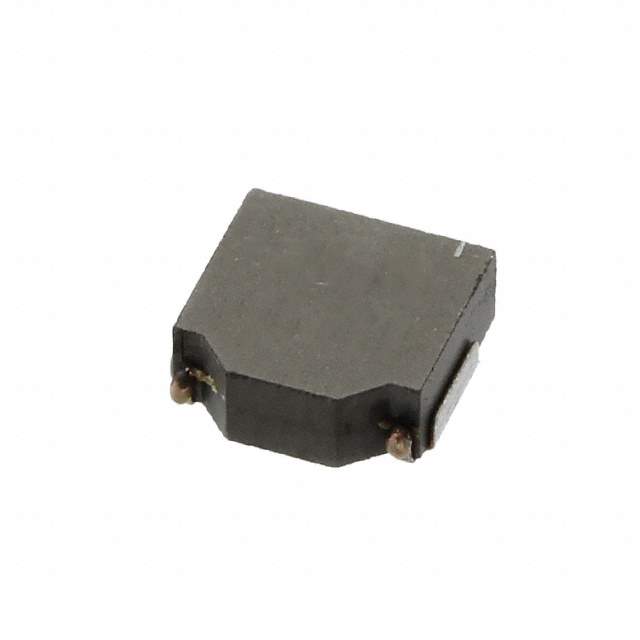

SPM4020T-1R0M Real Image
Same model may have multiple batches, images only for reference.

SPM4020T-1R0M

Part No SPM4020T-1R0M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 5A 34.7 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 5 A 34.7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 6.7A
Shielding Shielded
DC Resistance (DCR) 34.7mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.173" L x 0.161" W (4.40mm x 4.10mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-172370-6,445-172370-1,445-172370-2
Standard Package 500
Win Source Part Number 1327878-SPM4020T-1R0M
Ultra Librarian 3D Model Ultra Librarian SPM4020T-1R0M CAD Model

Description

The TDK Corporation SPM4020T-1R0M is a fixed inductor with a drum core, wirewound type.

  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Size/Dimension: 0.173" L x 0.161" W (4.40mm x 4.10mm)
  • Inductance: 1μH
  • Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 34.7mOhm max
  • Operating Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Category: Inductors, coils, chokes
