Same model may have multiple batches, images only for reference.

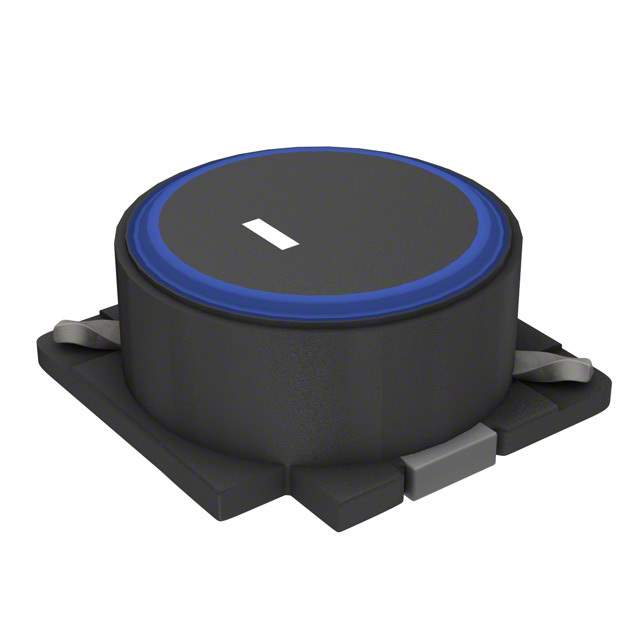

SLF12565T-471MR70-H Real Image
Same model may have multiple batches, images only for reference.

SLF12565T-471MR70-H

Part No SLF12565T-471MR70-H
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SLF-H
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 750 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 924mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.270" (6.85mm)
Other Names 445-16666-1,445-16666-2,SLF12565T-471MR70-H,445-16666-6
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272662-SLF12565T-471MR70-H
Ultra Librarian 3D Model Ultra Librarian SLF12565T-471MR70-H CAD Model

Description

The TDK Corporation SLF-H series fixed inductor is a non-standard package, shielded inductor.

  • Inductance: 470 µH
  • Tolerance: ±20%
  • Height (Max): 0.270" (6.85mm)
  • DC Resistance: 924mOhm Max
  • Current Rating: 750 mA
  • Operating Temperature Range: -40°C to 125°C
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Rated: AEC-Q200
  • Other Names: 445-16666-1, 445-16666-2, SLF12565T-471MR70-H, and 445-16666-6
