Same model may have multiple batches, images only for reference.

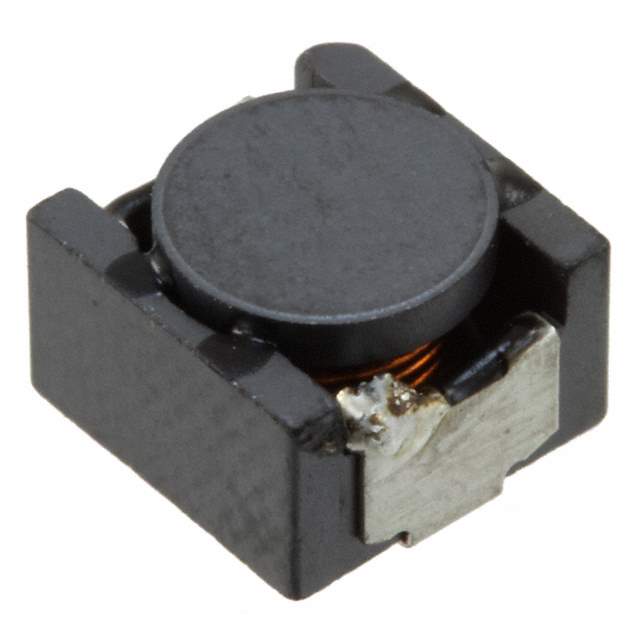

RLF7045T-4R7N2R5-D Real Image
Same model may have multiple batches, images only for reference.

RLF7045T-4R7N2R5-D

Part No RLF7045T-4R7N2R5-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.5A 36 MOHM SMD
Datasheet
RLF7045T-4R7N2R5-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Features Shielded Wirewound Inductor 36mOhm Max Nonstandard
Manufacturer TDK Corporation
Series RLF-D
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -40°C ~ 150°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number RLF7045T-4R7N2R5-D-ND, 445-16659-1, 445-16659-2, 445-16659-6
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932237-RLF7045T-4R7N2R5-D
Ultra Librarian 3D Model Ultra Librarian RLF7045T-4R7N2R5-D CAD Model

Description

The TDK Corporation RLF7045T-4R7N2R5-D is a surface mount shielded wirewound inductor designed for use in various electronic applications.

  • Mounting: Surface mount
  • Type: Shielded wirewound inductor
  • Resistance: 36mOhm Max
  • Package: Nonstandard
  • Operating Temperature Range: -40°C to 150°C
  • Packaging: Reel
  • Standard Package: 1,000
  • Lifecycle: Not for new designs
  • Application: electronic devices and circuits
