Same model may have multiple batches, images only for reference.

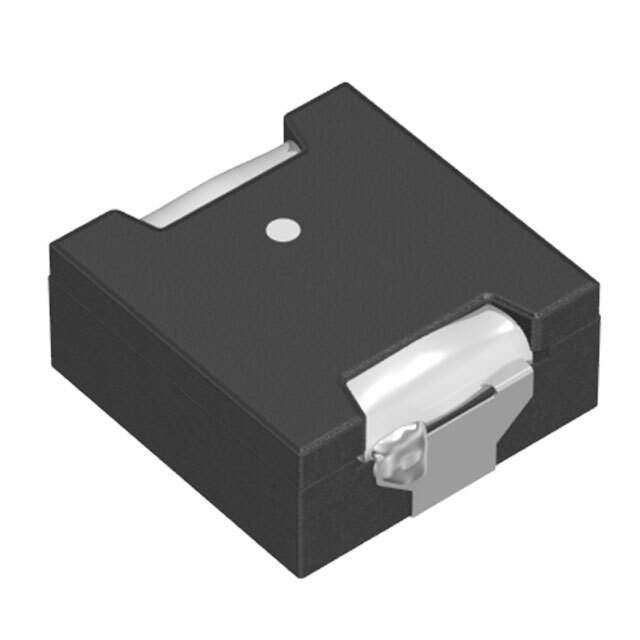

RLF12560T-7R8N8R2 Real Image
Same model may have multiple batches, images only for reference.

RLF12560T-7R8N8R2

Part No RLF12560T-7R8N8R2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 7.8UH 8.4A 10.2 MOHM
Datasheet
RLF12560T-7R8N8R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 7.8μH
Tolerance ±30%
Current Rating 8.4A
Current - Saturation 8.2A
DC Resistance (DCR) 12.24 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.185" (4.70mm)
Win Source Part Number 042325-RLF12560T-7R8N8R2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RLF12560T-7R8N8R2 CAD Model

Description

The TDK Corporation wirewound inductor is a high-quality electronic component that is designed to provide reliable performance.

  • Current Rating: 8.4A
  • Inductance: 7.8μH
  • Material: Ferrite
  • Tolerance: ±30%
  • Operating Temperature: -40°C to 105°C
  • Mounting: SMT
  • Height: 0.185" (4.70mm)
  • DC Resistance: 12.24 mOhm Max
  • Status: Active
  • Supply and Demand: Balanced
