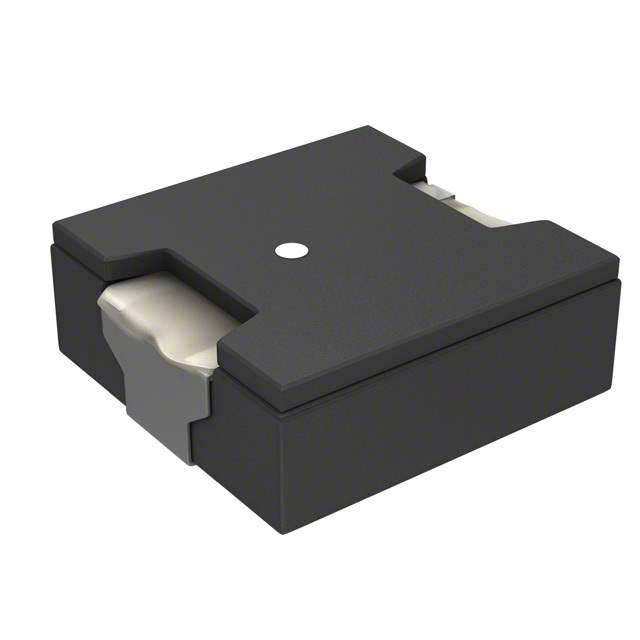

Same model may have multiple batches, images only for reference.

RLF12545T-4R2N6R5-PF

Name: RLF12545T-4R2N6R5-PF
Brand: TDK Corporation
SKU: 296053
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	RLF12545T-4R2N6R5-PF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 4.2UH 6.5A 7.4 MOHM
Datasheet	RLF12545T-4R2N6R5-PF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.2μH
Tolerance	±30%
Current Rating	6.5A
Current - Saturation	9.5A
DC Resistance (DCR)	8.88 mOhm Max
Temperature Range - Operating	-40°C to 105°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.185" (4.70mm)
Win Source Part Number	027429-RLF12545T-4R2N6R5-PF
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian RLF12545T-4R2N6R5-PF CAD Model

Alternative Products

Description

The RLF12545T-4R2N6R5-PF is a wirewound type inductor manufactured by TDK Corporation.

Current Rating: 6.5A
Inductance: 4.2μH
Height: 0.185 inches (4.70mm)
Tolerance: ±30%
Material: Ferrite
DC Resistance: 8.88 mOhm Max
