Same model may have multiple batches, images only for reference.

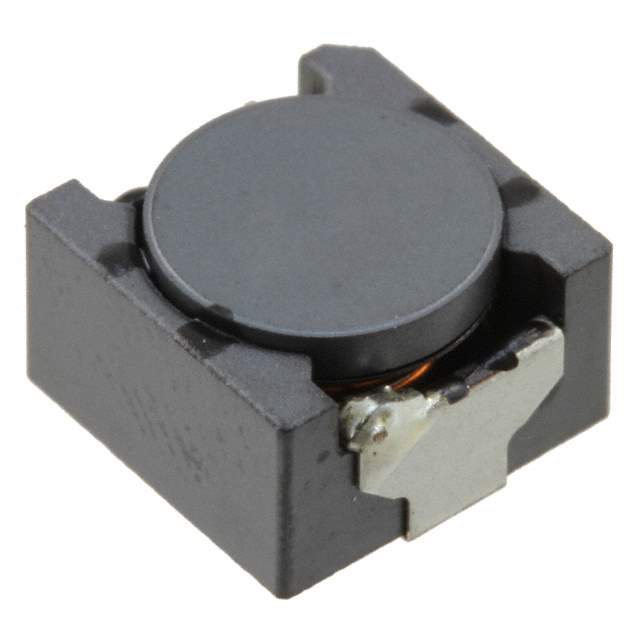

RLF10160T-101M1R1-D Real Image
Same model may have multiple batches, images only for reference.

RLF10160T-101M1R1-D

Part No RLF10160T-101M1R1-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100UH 1.1A 234 MOHM
Datasheet
RLF10160T-101M1R1-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating 1.1A
Current - Saturation 1.7A
DC Resistance (DCR) 234 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.252" (6.40mm)
Win Source Part Number 062548-RLF10160T-101M1R1-D
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RLF10160T-101M1R1-D CAD Model

Description

The TDK Corporation 062548-RLF10160T-101M1R1-D is a wirewound inductor with a current rating of 1.1A and an inductance of 100μH.

  • Current Rating: 1.1A
  • Inductance: 100μH
  • Height: 0.252" (6.40mm)
  • Mounting Technology: SMD (SMT)
  • Rating: AEC-Q200
  • Material: Ferrite
  • DC Resistance (DCR): 234 mOhm Max
  • Supply and Demand: Limited
  • Operating Temperature: -40°C to 150°C
