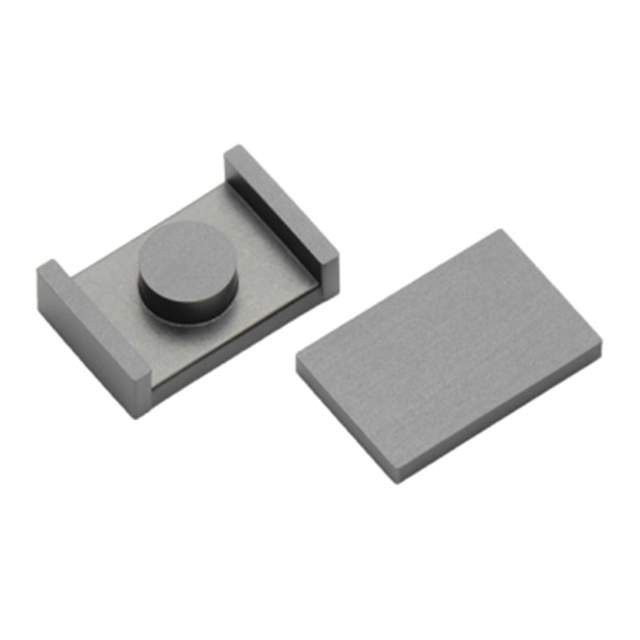

PC95EIR22/5.5/15-Z Real Image
Same model may have multiple batches, images only for reference.

PC95EIR22/5.5/15-Z

Part No PC95EIR22/5.5/15-Z
Manufacturer TDK Corporation
Catalog Ferrite Cores
Description FERRITE CORE EIR 4.15UH 1SET / Uncoated PC95 Ferrite Core HER, PLT Type 0.870" (22.10mm) Length 0.600" (15.25mm) Width Diameter 0.216" (5.50mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Magnetics - Transformer, Inductor Components - Ferrite Cores
Mfr TDK Corporation
Series Planar
Package Tray
Core Type HER, PLT
Supplier Device Package EIR 22 x 5.5 x 15
Material PC95
Inductance Factor (Al) 4.15 µH
Tolerance ±25%
Gap Ungapped
Core Factor (ΣI/A) mm<sup>-1</sup> 0.51
Effective Length (le) mm 46.1
Effective Area (Ae) mm² 23.2
Minimum Core Cross Section (Amin) mm² 36.3
Effective Magnetic Volume (Ve) mm³ 1070
Finish Uncoated
Height 0.216" (5.50mm)
Length 0.870" (22.10mm)
Width 0.600" (15.25mm)
Standard Package 256
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1338730-PC95EIR22/5.5/15-Z
Ultra Librarian 3D Model Ultra Librarian PC95EIR22/5.5/15-Z CAD Model

Description

This ferrite core is a planar type with a PC95 material and a series of HER, PLT.

  • Type: Planar
  • Material: PC95
  • Series: HER, PLT
  • Length: 0.870 inches
  • Height: 0.216 inches
  • Width: 0.600 inches
  • Inductance Factor: 4.15 µH
  • Tolerance: ±25 percent
  • Gap: Ungapped
  • Finish: Uncoated
  • Supplier Device Package: EIR 22 x 5.5 x 15
  • ECCN: EAR99 compliant
  • REACH status: Unaffected
  • MSL Level: Not Applicable
  • HTSUS: 8504.90.9630
  • Manufacturer: TDK Corporation
