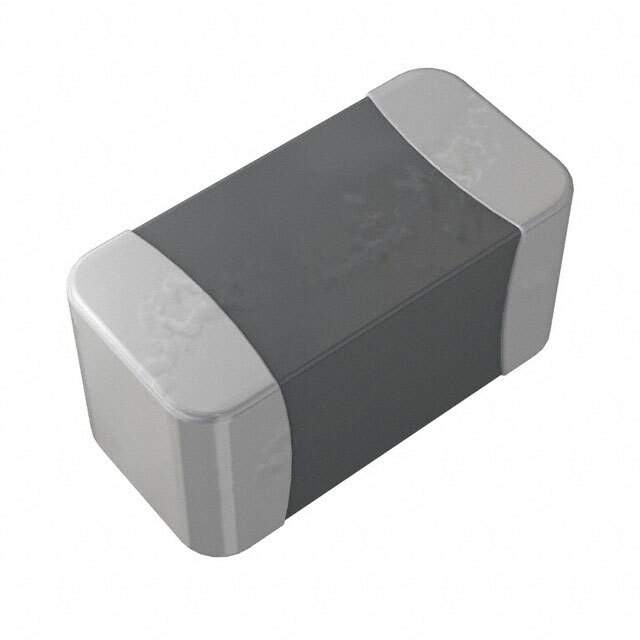

The NTCG103NH471JT1 is a Negative Temperature Coefficient (NTC) thermistor manufactured by TDK Corporation. It is designed for temperature sensing and compensation applications, providing a precise and reliable way to monitor and adjust to temperature changes.

Applications:

• Temperature sensing in electronic circuits
• Temperature compensation in electronic circuits
• Overheat protection
• Temperature control systems
• Battery temperature monitoring

Features:

• Resistance at 25°C: 470Ω
• B-constant (25/85): 3600K
• Tolerance: ±5%
• Operating Temperature Range: -40°C to +125°C
• Small size: 0603 (1608 metric) package
• High accuracy

Benefits:

• Accurate temperature sensing: Provides reliable temperature measurements.
• Precise temperature compensation: Compensates for temperature-induced variations in electronic circuits.
• Overheat protection: Protects circuits from damage due to excessive temperature.
• Small size: Saves board space.
• Wide operating temperature range: Suitable for a variety of applications.

Additional Details:

The NTCG103NH471JT1 thermistor exhibits a predictable change in resistance with temperature. As the temperature increases, the resistance decreases. The B-constant (β), is a measure of the temperature sensitivity of the thermistor. The device utilizes a ceramic material that provides a stable and reliable resistance-temperature characteristic. It is surface mountable.

This thermistor is suitable for use in temperature sensing, temperature compensation, and overheat protection circuits. Its small size and high accuracy make it an ideal choice for a wide range of applications.
