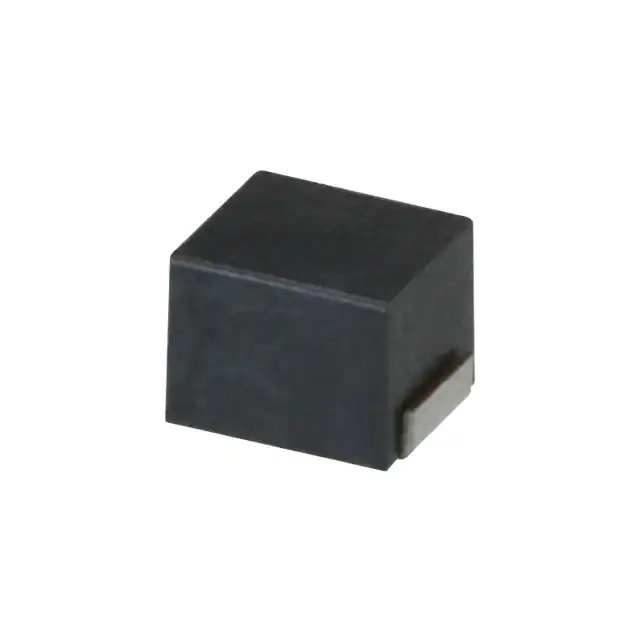

Same model may have multiple batches, images only for reference.

NLV25T-R27J-EF

Name: NLV25T-R27J-EF
Brand: TDK Corporation
SKU: 1369971
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NLV25T-R27J-EF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 270NH 420MA 550MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	TDK Corporation
Series	NLV-EF
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	270 nH
Tolerance	±5%
Current Rating (Amps)	420 mA
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	550mOhm Max
Q @ Freq	30 @ 25.2MHz
Frequency - Self Resonant	425MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	25.2 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.075" (1.90mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369971-NLV25T-R27J-EF
Ultra Librarian 3D Model	Ultra Librarian NLV25T-R27J-EF CAD Model

Alternative Products

Description

The NLV-EF series inductor is a drum core, wirewound type component manufactured by TDK Corporation.

Inductance: 270 nH
Operating Temperature: -40°C to 105°C
Mounting Type: Surface Mount
Shielding: Unshielded
DC Resistance: 550mOhm
Q Value: 30 @ 25.2MHz
Package: 1008 (2520 Metric)
Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Seated Height: 0.075" (1.90mm)
REACH Compliance: REACH affected
ECCN: EAR99
