Same model may have multiple batches, images only for reference.

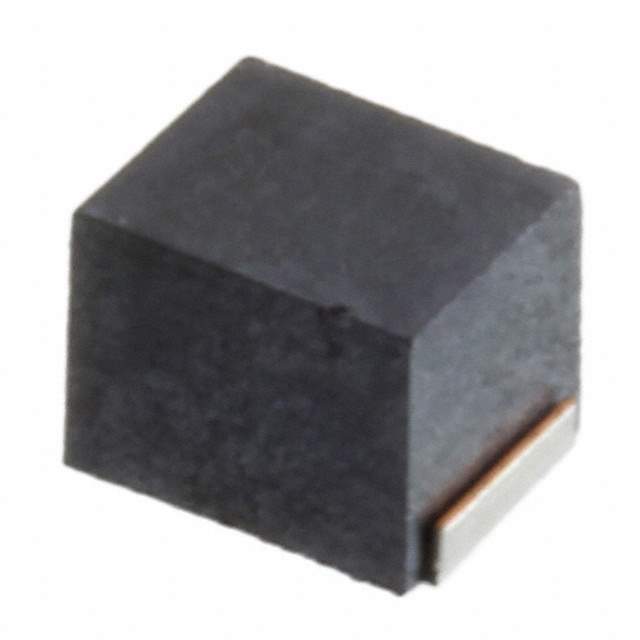

NLFV32T-220K-EF Real Image
Same model may have multiple batches, images only for reference.

NLFV32T-220K-EF

Part No NLFV32T-220K-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 120MA 480 MOHM
Datasheet
NLFV32T-220K-EF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±10%
Current Rating 120mA
DC Resistance (DCR) 480 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1210 (3225 Metric)
Height - Seated (Max) 0.094" (2.40mm)
Win Source Part Number 1083155-NLFV32T-220K-EF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLFV32T-220K-EF CAD Model

Description

The NLFV32T-220K-EF is a high-quality wirewound inductor manufactured by TDK Corporation.

  • Win Source Part Number: 1083155
  • Packaging: Reel - TR
  • Current Rating: 120mA
  • Inductance: 22μH
  • Height - Seated (Max): 0.094" (2.40mm)
  • Tolerance: ±10%
  • Material - Core: Ferrite
  • DC Resistance (DCR): 480 mOhm Max
  • Category: Inductors, Coils, Chokes
  • Status: Active
  • Temperature Range - Operating: -40°C to 105°C
  • Case / Package: 1210 (3225 Metric)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
