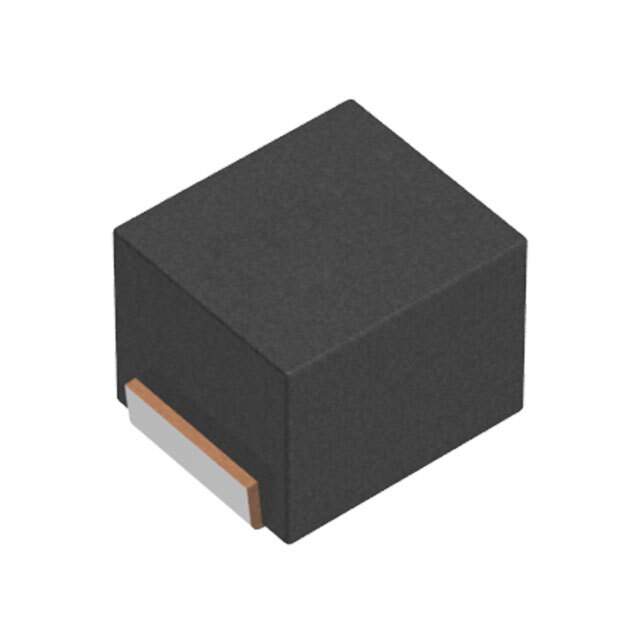

NLCV25T-4R7M-EFD Real Image
Same model may have multiple batches, images only for reference.

NLCV25T-4R7M-EFD

Part No NLCV25T-4R7M-EFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 285MA 1.04OHM SM / 4.7 µH Unshielded Drum Core, Wirewound Inductor 285 mA 1.04Ohm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series NLCV-EFD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 285 mA
Shielding Unshielded
DC Resistance (DCR) 1.04Ohm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 43MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-181794-6,NLCV25T-4R7M-EFD-ND,445-181794-2,445-181794-1
Standard Package 2,000
Win Source Part Number 1160069-NLCV25T-4R7M-EFD
Ultra Librarian 3D Model Ultra Librarian NLCV25T-4R7M-EFD CAD Model

Description

The TDK Corporation NLCV25T-4R7M-EFD is a fixed inductor with a drum core and wirewound type.

  • Part: NLCV25T-4R7M-EFD
  • Manufacturer: TDK Corporation
  • Type: Fixed Inductor
  • Core Type: Drum core
  • Winding Type: Wirewound
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Q: 20 @ 7.96MHz
  • Self-Resonant Frequency: 43MHz
  • DC Resistance: 1.04Ohm Max
  • Mounting: SMD (SMT)
  • Seated Height: 0.075" (1.90mm)
  • Package/Case: 1008 (2520 Metric)
  • Packaging: Tape and reel
  • Current Rating: 285mA
  • Operating Temperature: -40°C to 105°C
