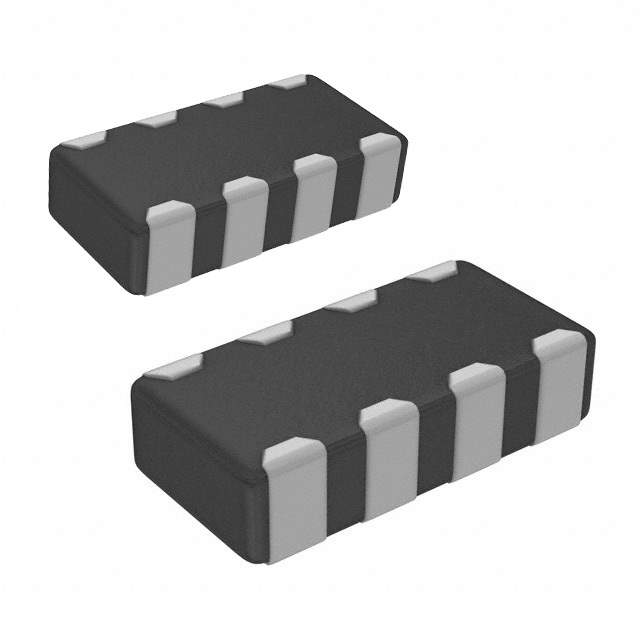

MZA2010F560C Real Image
Same model may have multiple batches, images only for reference.

MZA2010F560C

Part No MZA2010F560C
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 56 OHM 0804 4LN
Datasheet
MZA2010F560C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 56 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 800 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Win Source Part Number 1081485-MZA2010F560C
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MZA2010F560C CAD Model

Description

The TDK Corporation 1081485-MZA2010F560C is a signal line filter that is designed for a range of electronic applications.

  • Mounting Type: surface-mount device
  • Current Rating: 100mA
  • Height: 0.024" (0.60mm)
  • Impedance: 56 Ohm @ 100MHz
  • DC Resistance: 800 mOhm
