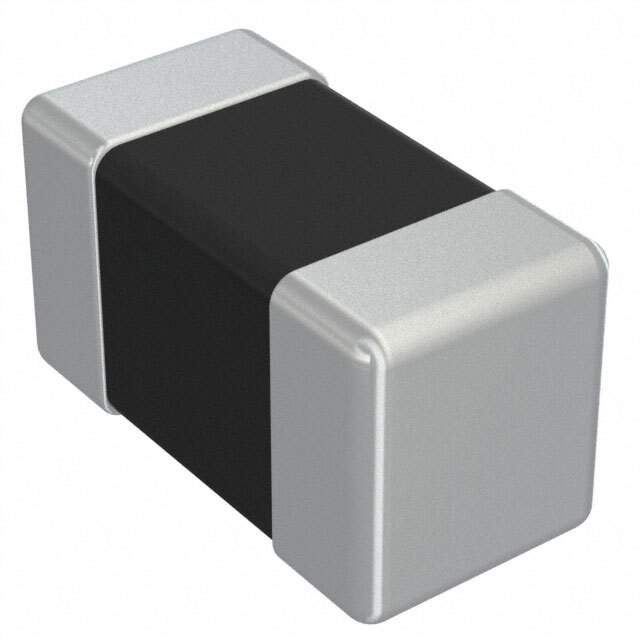

MPZ1005S121HT000 Real Image
Same model may have multiple batches, images only for reference.

MPZ1005S121HT000

Part No MPZ1005S121HT000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 120 OHM 0402 1LN / 120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 2A 55mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer TDK Corporation
Packaging Reel - TR
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 120 Ohms @ 100 MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 55mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0402 (1005 Metric)
Mounting Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 445-174933-6,445-174933-2,445-174933-1
Standard Package 10,000
Win Source Part Number 1328139-MPZ1005S121HT000
Ultra Librarian 3D Model Ultra Librarian MPZ1005S121HT000 CAD Model

Description

The TDK Corporation MPZ1005S121HT000 is a ferrite bead and chip filter that is used to protect electronic circuits from electromagnetic interference.

  • Impedance: 120 ohms @ 100 MHz
  • Maximum DC Resistance: 55mOhm
  • Size/Dimension: 0.039 inches in length and 0.020 inches in width
  • Mounting Type: Surface-mount
  • Standard Package: 10,000
  • ROHS3: Compliant
