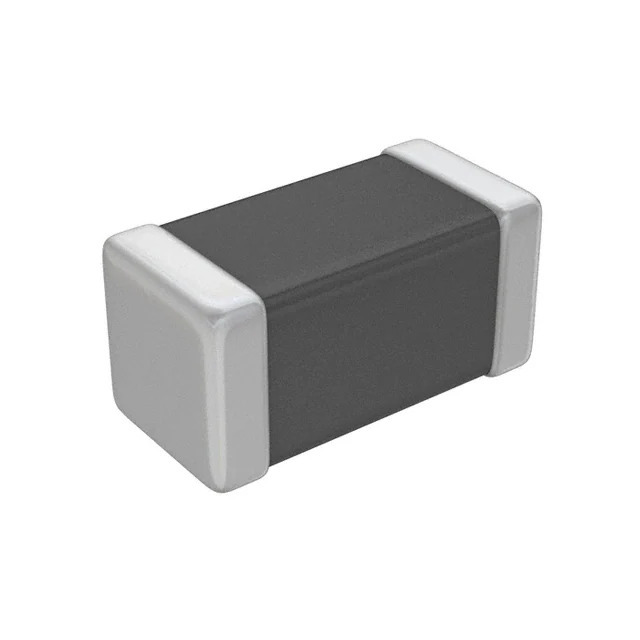

MMZ0603D470ET000 TDK Corporation
Same model may have multiple batches, images only for reference.

MMZ0603D470ET000

Part No MMZ0603D470ET000
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 47 OHM 0201 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr TDK Corporation
Series MMZ-E
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 47 Ohms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 760mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0201 (0603 Metric)
Mounting Type Surface Mount
Height (Max) 0.013" (0.33mm)
Size / Dimension 0.024" L x 0.012" W (0.60mm x 0.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1368958-MMZ0603D470ET000
Ultra Librarian 3D Model Ultra Librarian MMZ0603D470ET000 CAD Model

Description

The MMZ0603D470ET000 is a surface mount ferrite bead and chip filter manufactured by TDK Corporation.

  • Type: Ferrite Bead, Chip Filter
  • Mounting Type: Surface Mount
  • Series: MMZ-E
  • Package/Case: 0201 (0603 Metric)
  • Impedance: 47 Ohms @ 100 MHz
  • Current Rating: 200mA
  • Application: Signal Line Filtering
  • Size: 0.024" L x 0.012" W (0.60mm x 0.30mm)
  • Height: 0.013" (0.33mm)
  • REACH: Unaffected
