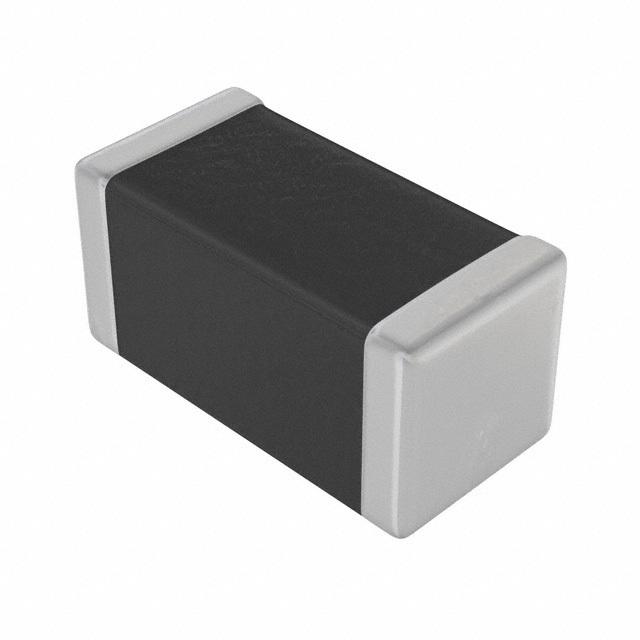

The MLF1005LR10K is a multilayer ferrite chip inductor manufactured by TDK Corporation. This inductor is designed for use in high-frequency circuits and is commonly used for impedance matching, filtering, and resonance applications. Its small size and high performance make it suitable for portable electronic devices and other compact designs.

Applications

• Mobile Phones: Impedance matching and filtering in RF circuits.
• Wireless Communication Devices: Noise suppression and impedance matching.
• High-Frequency Circuits: Resonant circuits and signal filtering.
• Bluetooth Devices: Impedance matching in antenna circuits.
• GPS Modules: Filtering noise in GPS receiver circuits.
• Wearable Electronics: Inductor applications for small, portable devices.

Features

• Multilayer Ferrite Construction: Provides high inductance and excellent Q-factor.
• Small Size: Allows for high-density mounting on printed circuit boards.
• High Self-Resonant Frequency: Suitable for high-frequency applications.
• Low DC Resistance: Minimizes power loss and improves efficiency.
• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards.
• RoHS Compliant: Complies with the Restriction of Hazardous Substances directive.

Benefits

• Improved Circuit Performance: Provides optimal impedance matching and filtering.
• Reduced Board Space: Small size allows for high-density mounting.
• Increased Efficiency: Low DC resistance minimizes power loss.
• Easy Assembly: Designed for automated assembly, reducing manufacturing costs.
• Versatile Application: Suitable for a wide range of high-frequency circuits.

Additional Details

The MLF1005LR10K has an inductance of 0.1 μH (100nH). The tolerance is ±10% (indicated by the 'K'). The 'MLF1005' indicates the series and physical size, which is 1.0mm x 0.5mm (0402). The self-resonant frequency is typically in the hundreds of MHz to GHz range. It is used in high frequency applications where space is at a premium. The operating temperature range generally spans from -55°C to +125°C. It is designed for reflow soldering.
