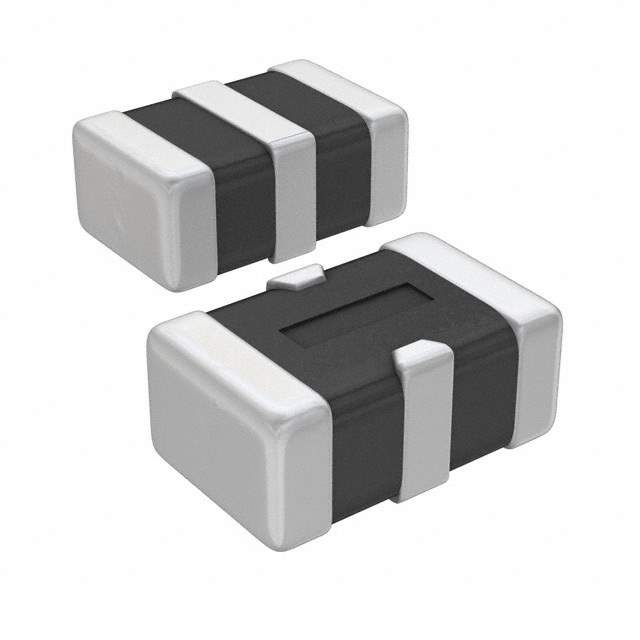

MEM2012F25R0T Real Image1 MEM2012F25R0T Real Image2
Same model may have multiple batches, images only for reference.
MEM2012F25R0T Real Image1 MEM2012F25R0T Real Image2
MEM2012F25R0T Real Image1 MEM2012F25R0T Real Image2
Same model may have multiple batches, images only for reference.

MEM2012F25R0T

Part No MEM2012F25R0T
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 25MHZ SMD / LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel 200 mA 0805 (2012 Metric), 3 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr TDK Corporation
Series MEM
Package Tape & Reel (TR)
Product Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Center / Cutoff Frequency 25MHz (Cutoff)
Attenuation Value 20dB @ 300MHz ~ 2GHz
Resistance - Channel (Ohms) -
Current 200 mA
Values -
ESD Protection No
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 12V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 3 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.039" (1.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 4,000 pcs
Win Source Part Number 1382885-MEM2012F25R0T
Ultra Librarian 3D Model Ultra Librarian MEM2012F25R0T CAD Model

Description

The MEM2012F25R0T is a low pass EMI/RFI filter designed for data lines in mobile devices.

  • Voltage Rating: 12V
  • Current Rating: 200mA
  • Center/Cutoff Frequency: 25MHz
  • Attenuation: 20dB @ 300MHz to 2GHz
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Pieces per Package: 4,000
  • Technology: LC (Pi)
  • Height: 0.039" (1.00mm)
  • Order: 3rd
  • Package/Case: 0805 (2012 Metric), 3 PC Pad
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • Manufacturer: TDK Corporation
  • Product Status: Not Recommended for New Designs
