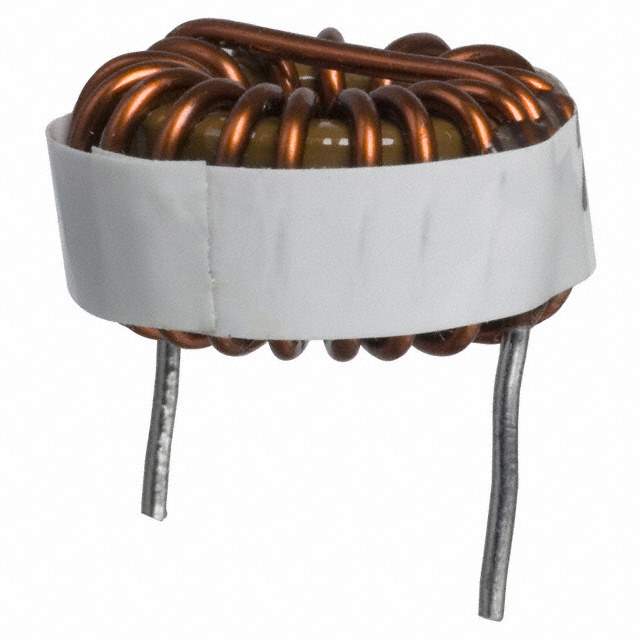

2200HT-331-H-RC Real Image
Same model may have multiple batches, images only for reference.

2200HT-331-H-RC

Part No 2200HT-331-H-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330UH 3.1A 180 MOHM TH / 330 µH Shielded Toroidal Inductor 3.1 A 180mOhm Max Radial, Horizontal (Open)
Datasheet
2200HT-331-H-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series 2200HT
Package Bulk
Type Toroidal
Material - Core Iron Powder
Inductance 330 µH
Tolerance ±15%
Current Rating (Amps) 3.1 A
Shielding Shielded
DC Resistance (DCR) 180mOhm Max
Temperature Range - Operating -55°C ~ 200°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Dimension 0.950" Dia (24.13mm)
Height - Seated (Max) 0.550" (13.97mm)
Base Product Number 2200HT
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 2200HT331HRC
Standard Package 64
Win Source Part Number 1063627-2200HT-331-H-RC
Ultra Librarian 3D Model Ultra Librarian 2200HT-331-H-RC CAD Model

Description

This is a fixed inductor from Bourns Inc. with the Win Source Part Number 1063627-2200HT-331-H-RC.

  • Category: Inductors, Coils, Chokes
  • Series: 2200HT
  • Type: Toroidal
  • Package: Bulk
  • Shielding: Shielded
  • Inductance: 330 µH
  • Height - Seated (Max): 0.550" (13.97mm)
  • Standard Package: 64 units
  • Tolerance: ±15%
  • Material - Core: Iron Powder
  • DC Resistance (DCR): 180mOhm Max
  • Supplier Device Package: Not Specified
  • Operating Temperature: -55°C ~ 200°C
  • Dimension: 0.950" Dia (24.13mm)
  • Alternative Parts (Cross-Reference): 2218-V-RC, 2218-H-RC, 2100HT-331-V-RC, 4922R-31L, 2474R-31L, and 4922-31L2200HT-331H-RC
  • MSL Level: Not Applicable
  • Current Rating (Amps): 3.1 A
  • Inductance Frequency - Test: 1 kHz
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.4000
