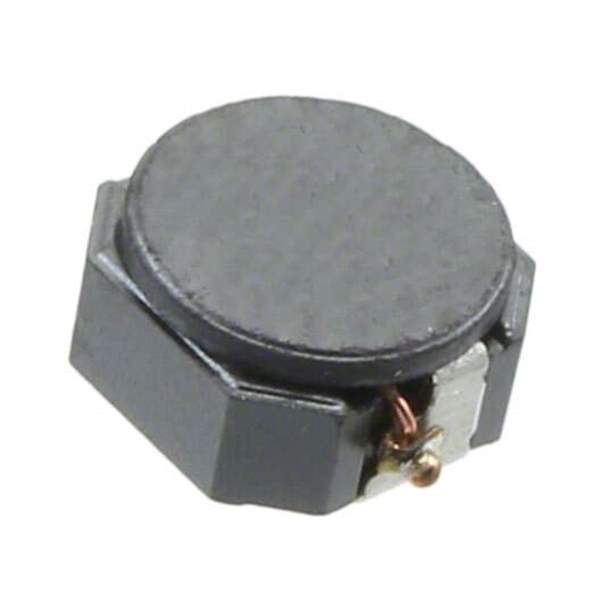

LTF4022T-1R2N-D Real Image
Same model may have multiple batches, images only for reference.

LTF4022T-1R2N-D

Part No LTF4022T-1R2N-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 1.2uH 30% 1MHz Ferrite 3.3A 0.028Ohm DCR Automotive T/R / FIXED IND 1.2UH 3.3A 28 MOHM SMD
Datasheet
LTF4022T-1R2N-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series LTF4022-D
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 1.2μH
Tolerance ±30%
Current Rating 3.3A
Current - Saturation 2.8A
Shielding Shielded
DC Resistance (DCR) 28 mOhm Max
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 1MHz
Mounting SMD
Package 2-SMD
Dimension 0.217" L x 0.157" W (5.50mm x 4.00mm)
Height - Seated (Maximum) 0.087" (2.20mm)
Win Source Part Number 784518-LTF4022T-1R2N-D
Popularity Medium
Supply and Demand Status Limited
Family Name LTF-D
Introduction Date June 30, 2013
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian LTF4022T-1R2N-D CAD Model

Description

The TDK Corporation LTF4022T-1R2N-D is a wirewound, shielded inductor with an inductance of 1.2μH and a current rating of 3.3A.

  • Tolerance: ±30%
  • Operating Temperature: -40°C to 150°C
  • Dimensions: 0.217" L x 0.157" W (5.50mm x 4.00mm)
  • Package: reel
  • Series: LTF4022-D
  • AEC-Q200 Rated: Yes
  • DC Resistance (DCR): 28 mOhm Max
  • Current Saturation: 2.8A
  • Supply and Demand: Limited
  • Material: ferrite
  • Category: Inductors, Coils, Chokes
