Same model may have multiple batches, images only for reference.

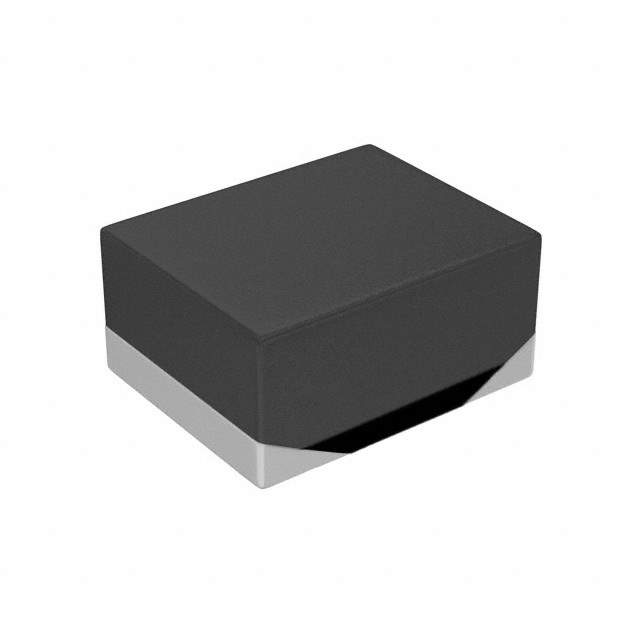

MAKK2520TR68M Real Image
Same model may have multiple batches, images only for reference.

MAKK2520TR68M

Part No MAKK2520TR68M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 680NH 2.9A 59 MOHM SMD / 680 nH Shielded Drum Core, Wirewound Inductor 2.9 A 59mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 2.9 A
Current - Saturation (Isat) 3.7A
Shielding Shielded
DC Resistance (DCR) 59mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 587-4146-1,587-4146-2,LQ MAKK2520TR68M,587-4146-2-ND,587-MAKK2520TR68MTR,587-4146-6
Standard Package 3,000
Win Source Part Number 980459-MAKK2520TR68M
Ultra Librarian 3D Model Ultra Librarian MAKK2520TR68M CAD Model

Description

The Taiyo Yuden MAKK2520TR68M is a drum core, wirewound fixed inductor with a shielded package.

  • Inductance: 680 nH
  • Tolerance: ±20 percent
  • DC Resistance: 59 mOhm max
  • Current Rating: 2.9 A
  • Operating Temperature Range: -40°C to 105°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
  • Standard Package: 3,000
