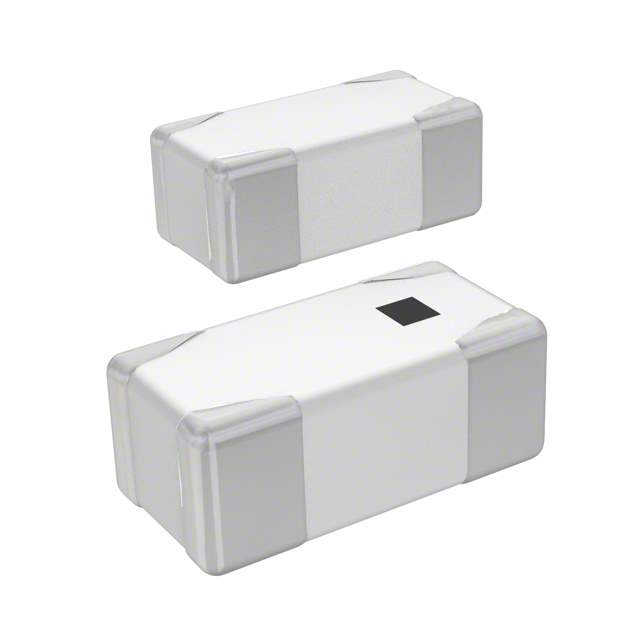

The HHM2910E4 is a multilayer chip inductor manufactured by TDK Corporation. It's designed for high-frequency applications, offering a small size and excellent electrical characteristics. These inductors are commonly used in RF circuits, impedance matching, and filtering.

Applications

• RF circuits (e.g., mobile phones, wireless devices)
• Impedance matching
• Filtering (e.g., low-pass, high-pass filters)
• Oscillator circuits
• Wireless communication systems

Features

• Multilayer structure for high Q factor
• Small size (e.g., 0603, 0402)
• High self-resonant frequency (SRF)
• Excellent temperature stability
• Surface mountable

Benefits

• Improved RF performance due to high Q factor
• Reduced PCB space requirements with small size
• Suitable for high-frequency applications with high SRF
• Stable performance over a wide temperature range
• Easy integration with automated assembly processes

Technical Specifications

The HHM2910E4's inductance value is a key parameter, typically in the nanohenry (nH) range (e.g., 1nH to 100nH or higher). The Q factor indicates the inductor's efficiency, with higher values indicating lower losses. The self-resonant frequency (SRF) is the frequency at which the inductor's impedance becomes primarily resistive. The DC resistance (DCR) should be low to minimize losses. The device is typically available in standard EIA case sizes (e.g., 0603, 0402). Detailed specifications, including inductance tolerance, Q factor, SRF, DCR, and rated current, are available in the TDK datasheet.

The HHM2910E4 is a versatile inductor suitable for a wide range of high-frequency applications. Its small size and excellent electrical characteristics make it an ideal choice for modern electronic devices. Always refer to the manufacturer's datasheet for detailed specifications and application guidelines.
