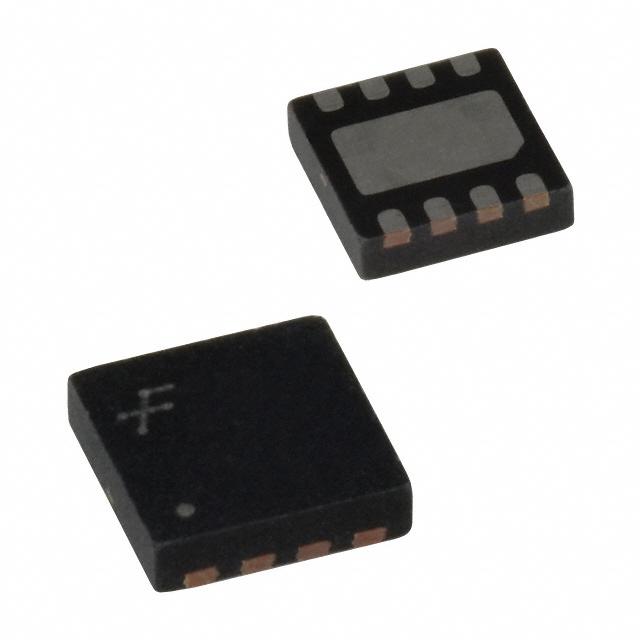

FAN5009MPX Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FAN5009MPX

Part No FAN5009MPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Gate Drivers
Description IC DRIVER MOSFET DUAL 12V 8MLP
Datasheet
FAN5009MPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10 V to 13.5 V
Logic Voltage - VIL, VIH 0.8V, 2.5V
Input Type Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) 15V
Rise and Fall Time 40ns, 20ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (5x6)
Win Source Part Number 066838-FAN5009MPX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FAN5009MPX CAD Model

Description

Overview

The FAN5009MPX is an advanced power management solution tailored for applications demanding high efficiency and reliable operation. It's optimized for both stationary and mobile applications where power efficiency is crucial.

Features and Benefits

  • Precision voltage regulation
  • Wide input voltage range compatibility
  • Thermal shutdown protection
  • User-friendly interface for easy configuration

Applications

  • Telecommunications equipment
  • Automotive electronics
  • Personal computing devices
  • IoT devices

The FAN5009MPX stands out with its robust feature set, making it a preferred choice for engineers seeking efficiency and reliability in their power management designs.
